Capital CRV430 Camera System
The need for full observation when operating large working vehicles like agricultural and constraction machinery is ever growing, with greater focus on operator safety and the reduction of waste. The Capital range of observation camera systems have been designed specifically for large vehicles operating in tough working conditions to provide a good quality image, whatever the job.
The monitors are designed to be able to withstand the heavy vibrations experienced on vehicles working on rough terrain, and the cameras are built with aluminium housing to function in all conditions - day or night!
Our systems have been used for operations including vehicle reversing, trailer hitching, bailing, wagon loading, seed drilling, harvester maneuvering, pallet storing, safety and security.

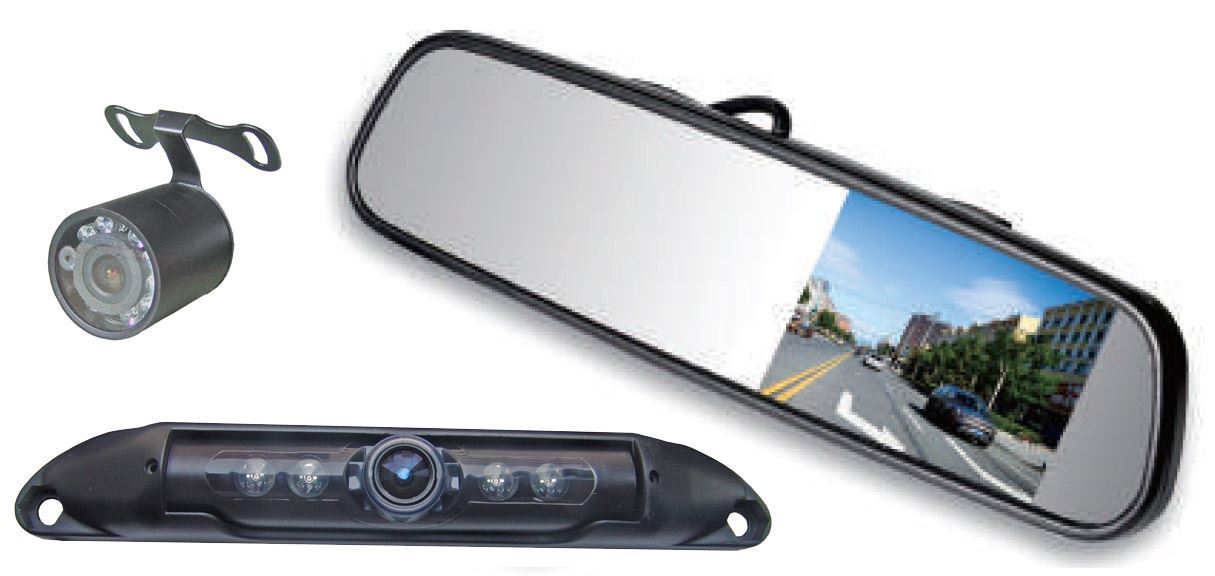

The Capital CRV430 Camera System has been designed to replace the rear-view mirror in the vehicle, to provide a visual display from the camera, whilst still retaining the reflective surface of a mirror. It is ideal for smaller, more lightweight working vehicles, such as pick-up trucks, horse boxes, motorhomes etc. It provides a 4.3" integrated LCD full colour monitor that can be installed in place of the rear-view mirror either by clipping onto the original mirror or attaching to the windscreen with self-adhesive backing. The cameras come in various different forms, suitable for different environments.
For example, the "mini-camera" is ideal for mounting inside the rear window of a vehicle to assist with reversing, or as observation inside a horse box. The "licence-camera" is ideal for mounting under the lip of the licence plate surround to assist with reversing or trailer hitching. And our deluxe, full waterproof cameras can also be fitted to these monitors.
The kit comes complete with a monitor, your choice of camera, camera, 2x 5m camera cables, power cables and mounting brackets.
Please select your desired choice of camera and monitor fitment from the drop-down boxes above.
CRV430 Specifications:
Monitor:
- 4.3" integrated colour LCD image
- 12V operating voltage
- 2 camera input
- Special reflective glass to act as mirror
- Automatic reverse view
- Automatic camera switching
- Brightness/contrast & colour adjustment
- Reversed view camera picture

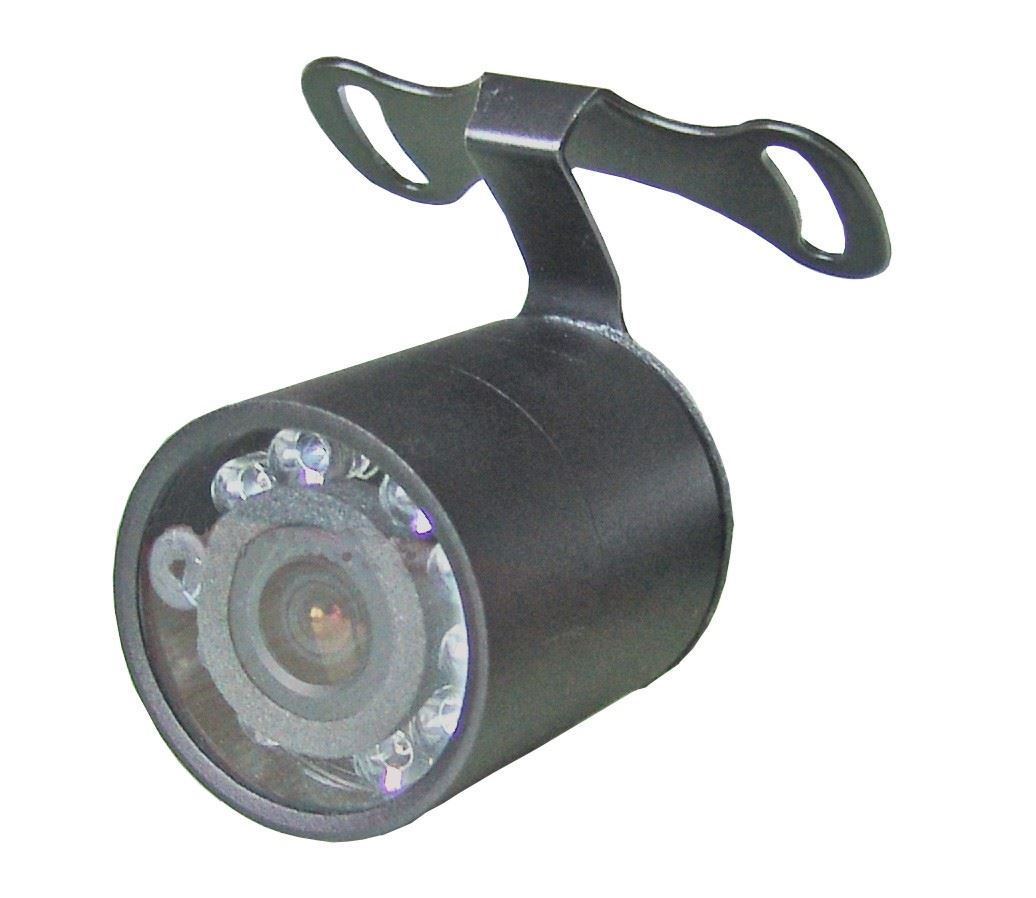

Camera (Mini-camera):
- Aluminium housing
- Automatic LED nightvision
- Wide angle optics (120 degree)

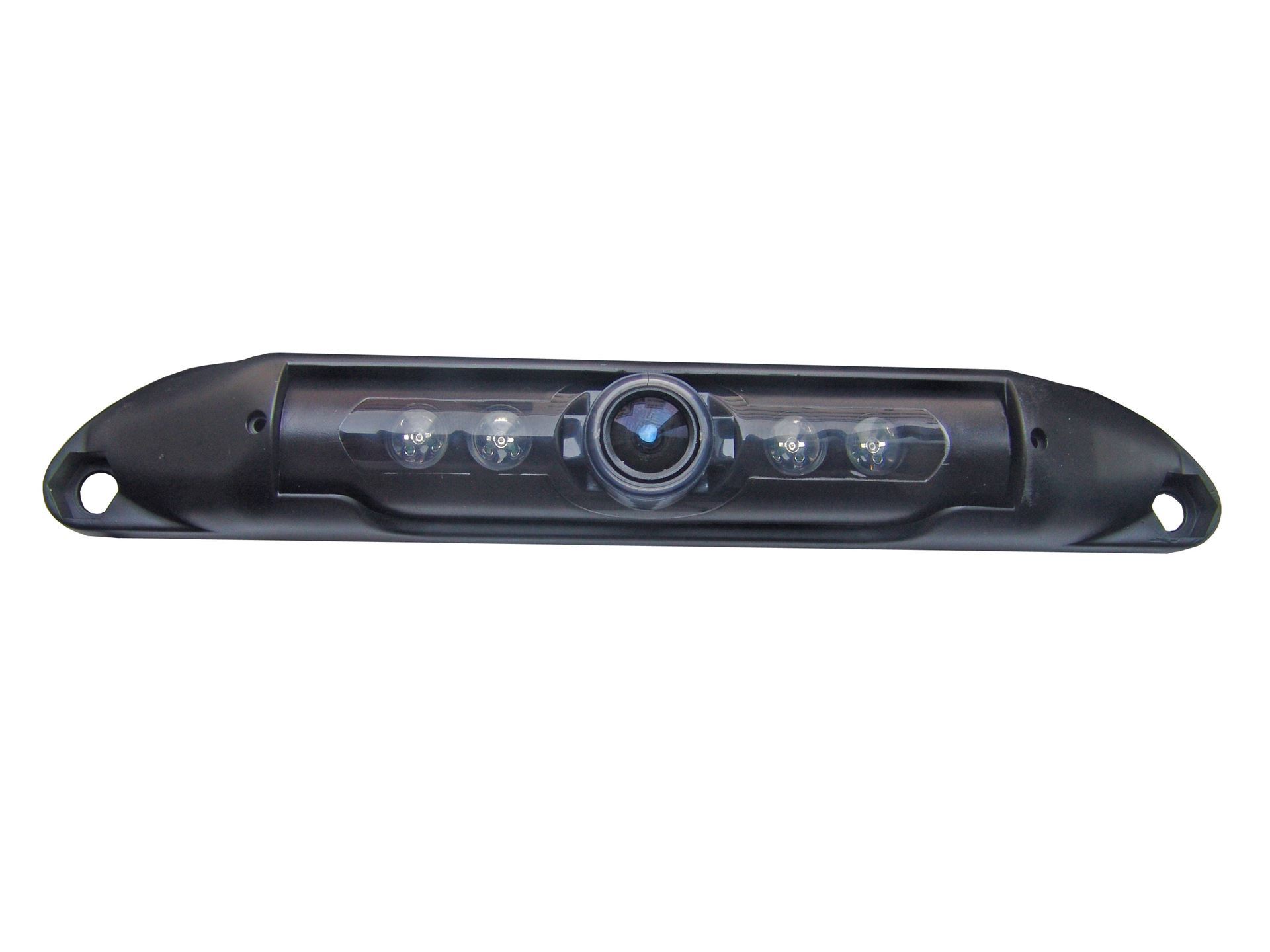

Camera (Licence-camera):
- Plastic housing
- Automatic LED nightvision
- Designed to fit neatly above or below the vehicle licence plate
- Very wide angle optics (180 degree)

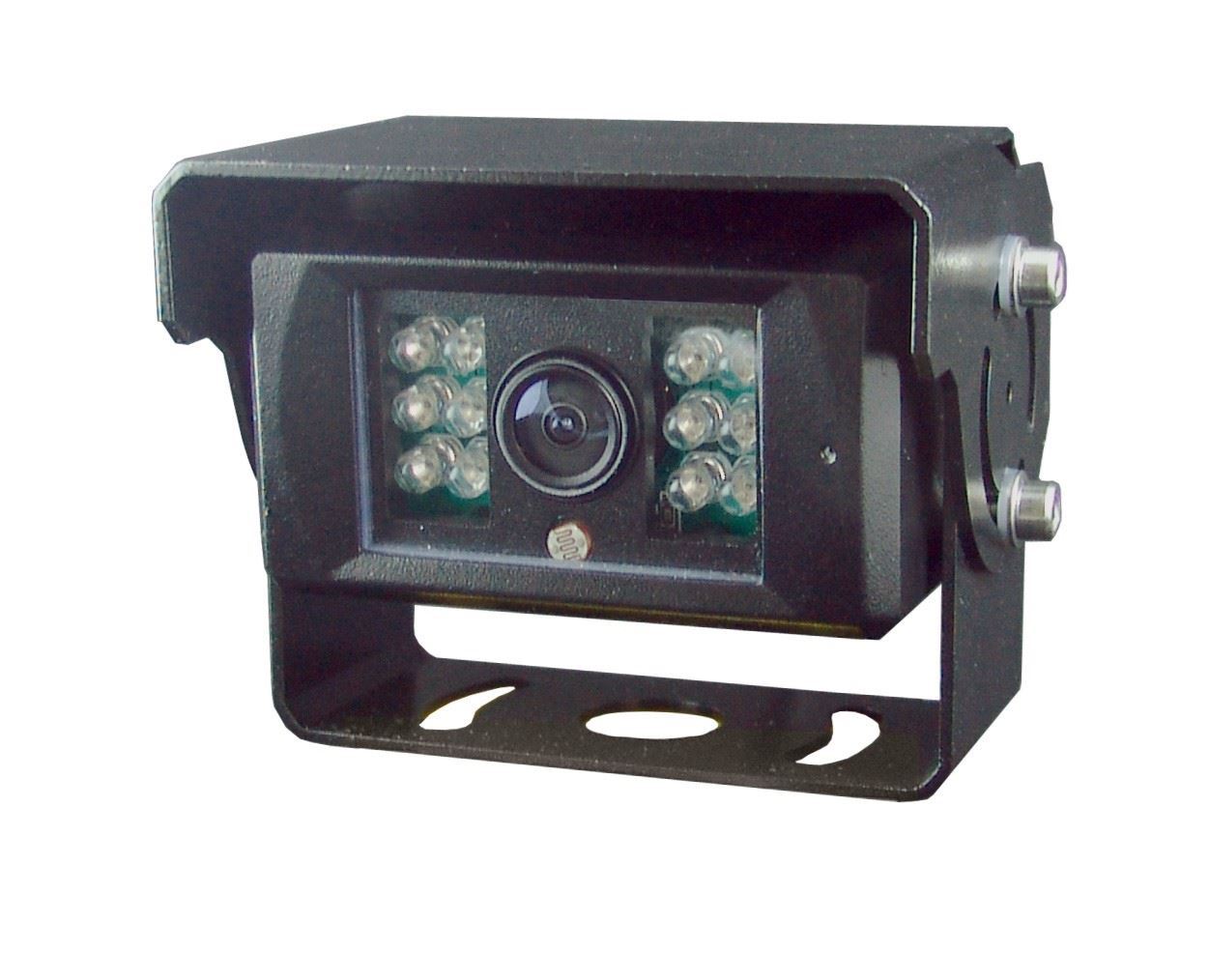

Camera (Deluxe-camera):
- Aluminium weatherproof housing
- Automatic LED nightvision
- Wide angle optics (120 degree)
- High resolution with 250,000 pixels
- Electronic brightness adjustment
- Microphone
- 20m cable
Accessories:
- Additional camera
- Additional camera cable lengths
- Trailer lead suzi cable
- Magnetic mount
CRV430 Technical Data:
Monitor:
- Operating Voltage: DC 12V
- Power Consumption: 10 watts
- Audio Power Consumption: 1.5 watts
- LCD: 4.3" colour
- Resolution: 480 x 272 lines
Cameras:
- Operating Voltage: DC 12V
- Power Consumption: 2 watts
- Picture Sensor: 1/3" CCD sensor
- Horizontal Viewing Angle: 120 degrees (Licence-camera = 180 degrees)
- Resolution: 480 x RGB x 240
- Light Sensitivity: 0 lux
