Budget observation camera system with 5.6" LCD monitor and a infra-red camera. Ideal for working road-going vehicles such as pick-ups, horse boxes, commercial vehicles and motorhomes.
Capital CRV560 Camera System
The need for full observation when operating large working vehicles like agricultural and constraction machinery is ever growing, with greater focus on operator safety and the reduction of waste. The Capital range of observation camera systems have been designed specifically for large vehicles operating in tough working conditions to provide a good quality image, whatever the job.
The monitors are designed to be able to withstand the heavy vibrations experienced on vehicles working on rough terrain, and the cameras are built with aluminium housing to function in all conditions - day or night!
Our systems have been used for operations including vehicle reversing, trailer hitching, bailing, wagon loading, seed drilling, harvester maneuvering, pallet storing, safety and security.
The Capital CRV560 Camera System is ideal for smaller, more lightweight working vehicles, such as pick-up trucks, horse boxes, commercial vehicles, motorhomes etc. It provides a 5.6" LCD full colour monitor that can be installed anywhere within the vehicle with it's self-adhesive monitor mount. The cameras come in various differnt forms, suitable for different environments.

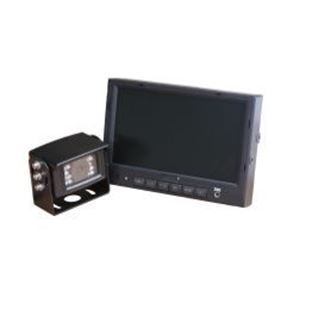

The kit comes complete with a monitor, camera, 20m camera cables, power cables and mounting brackets.
CRV560 Specifications:
Monitor:
Camera:
CRV560 Technical Data:

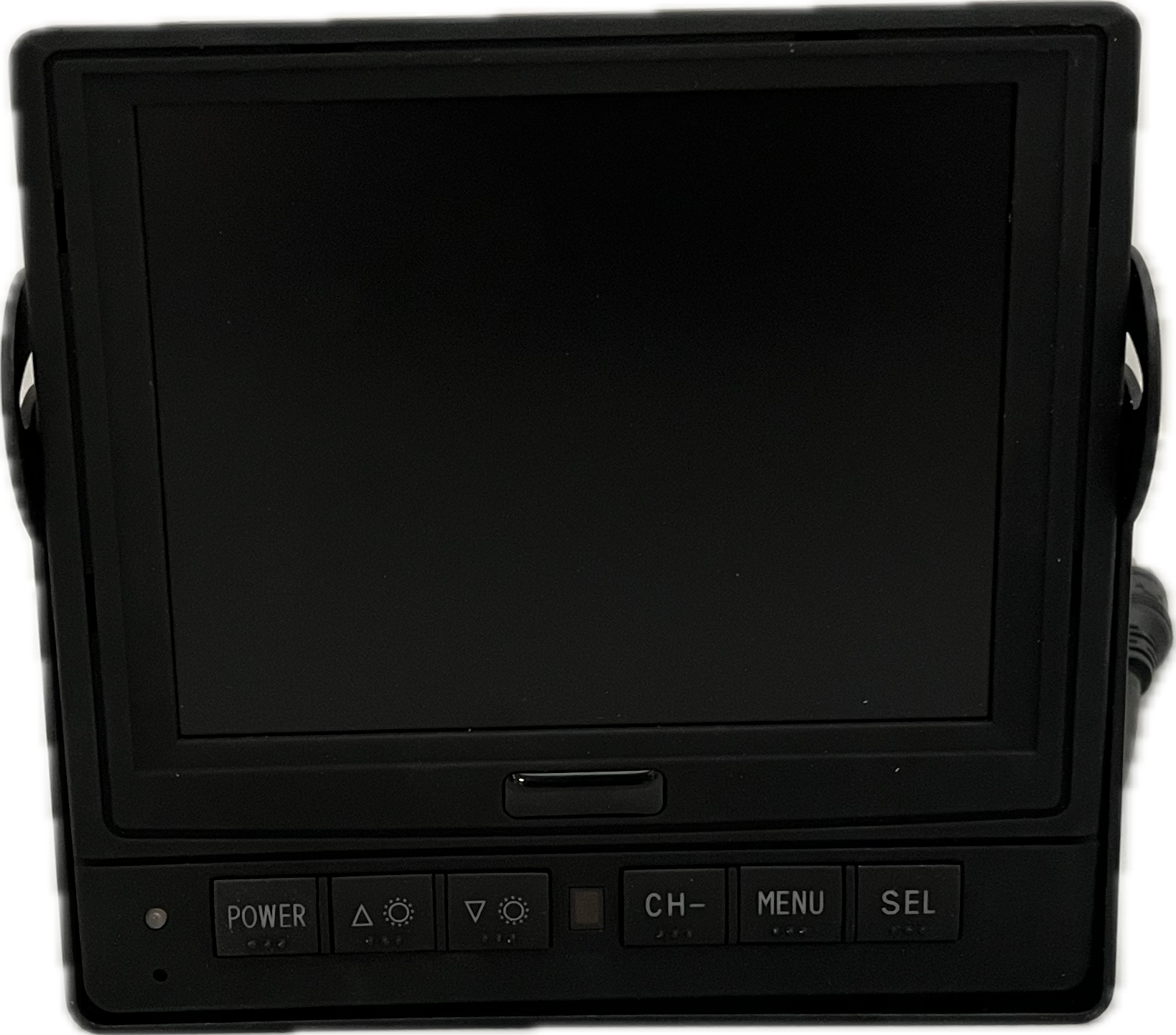

Monitor:
- Operating Voltage: DC 12V-24V
- Power Consumption: 10 watts
- Audio Power Consumption: 1.5 watts
- LCD: 5.6" colour
- Resolution: 640 X 3RGB X 480. Aspect Ratio: 16:9

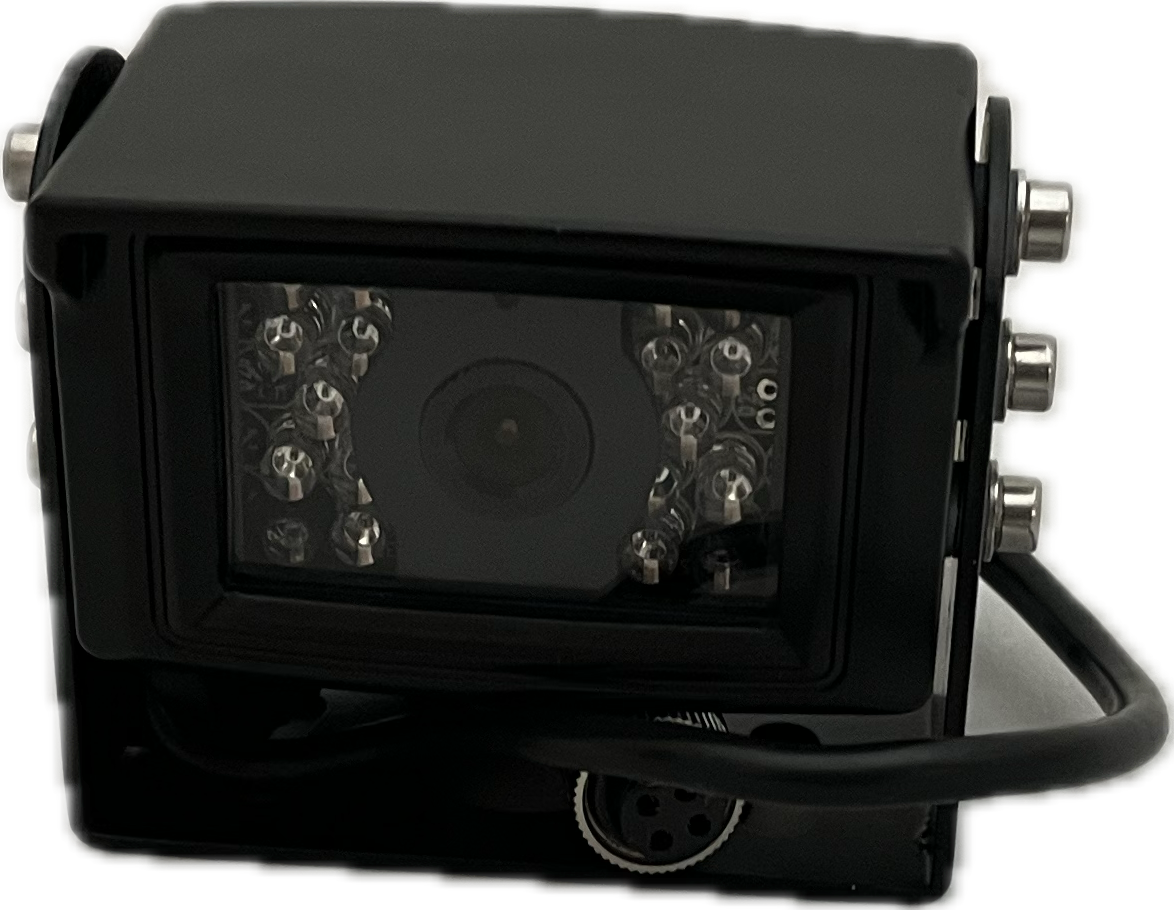

Cameras:
- Operating Voltage: DC 12V
- Power Consumption: 2 watts
- Picture Sensor: 1/3" CCD sensor
- Horizontal Viewing Angle: 120 degrees
- Resolution: 420 Horizontal Lines
- Light Sensitivity: 0 lux
- Operating Temperature: -20° to 70°
