Capital CRV560WD Camera System
The need for full observation when operating large working vehicles like agricultural and constraction machinery is ever growing, with greater focus on operator safety and the reduction of waste. The Capital range of observation camera systems have been designed specifically for large vehicles operating in tough working conditions to provide a good quality image, whatever the job.
The monitors are designed to be able to withstand the heavy vibrations experienced on vehicles working on rough terrain, and the cameras are built with aluminium housing to function in all conditions - day or night!
Our systems have been used for operations including vehicle reversing, trailer hitching, bailing, wagon loading, seed drilling, harvester maneuvering, pallet storing, safety and security.
The Capital CRV560 Camera System is ideal for smaller, more lightweight working vehicles, such as pick-up trucks, horse boxes, commercial vehicles, motorhomes etc. It provides a 5.6" LCD full colour monitor that can be installed anywhere within the vehicle with it's self-adhesive monitor mount. The cameras come in various differnt forms, suitable for different environments.

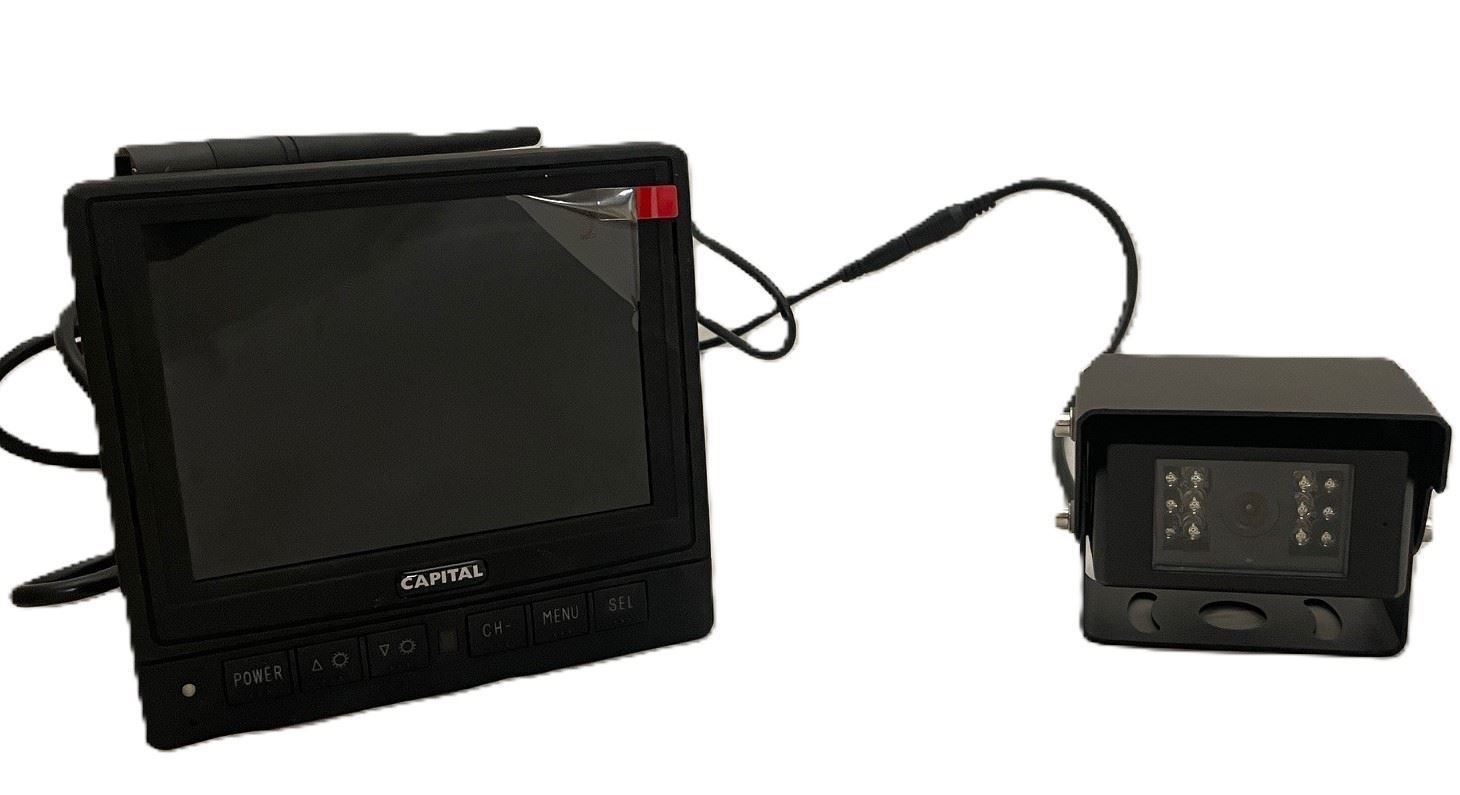

The kit comes complete with a monitor, camera, 20m camera cables, power cables and mounting brackets.
CRV560 Specifications:
Monitor:
- 5.6” colour LCD monitor
- 10-32V operating voltage
- built-in 2.4G digital wireless receiver
- 4 channel AV inputs, 1 video & 1 audio input
- automatic or manual camera switching
- 100m+ range
- mirror or real view picture option
- built in speaker
- remote control
Camera:
- cameras available using 4 channels
- built-in transmitter
- 12V operating voltage
- wide angle optics
- high resolution with 250,000 pixels
- electronic brightness adjustment
CRV560WD Technical Data:

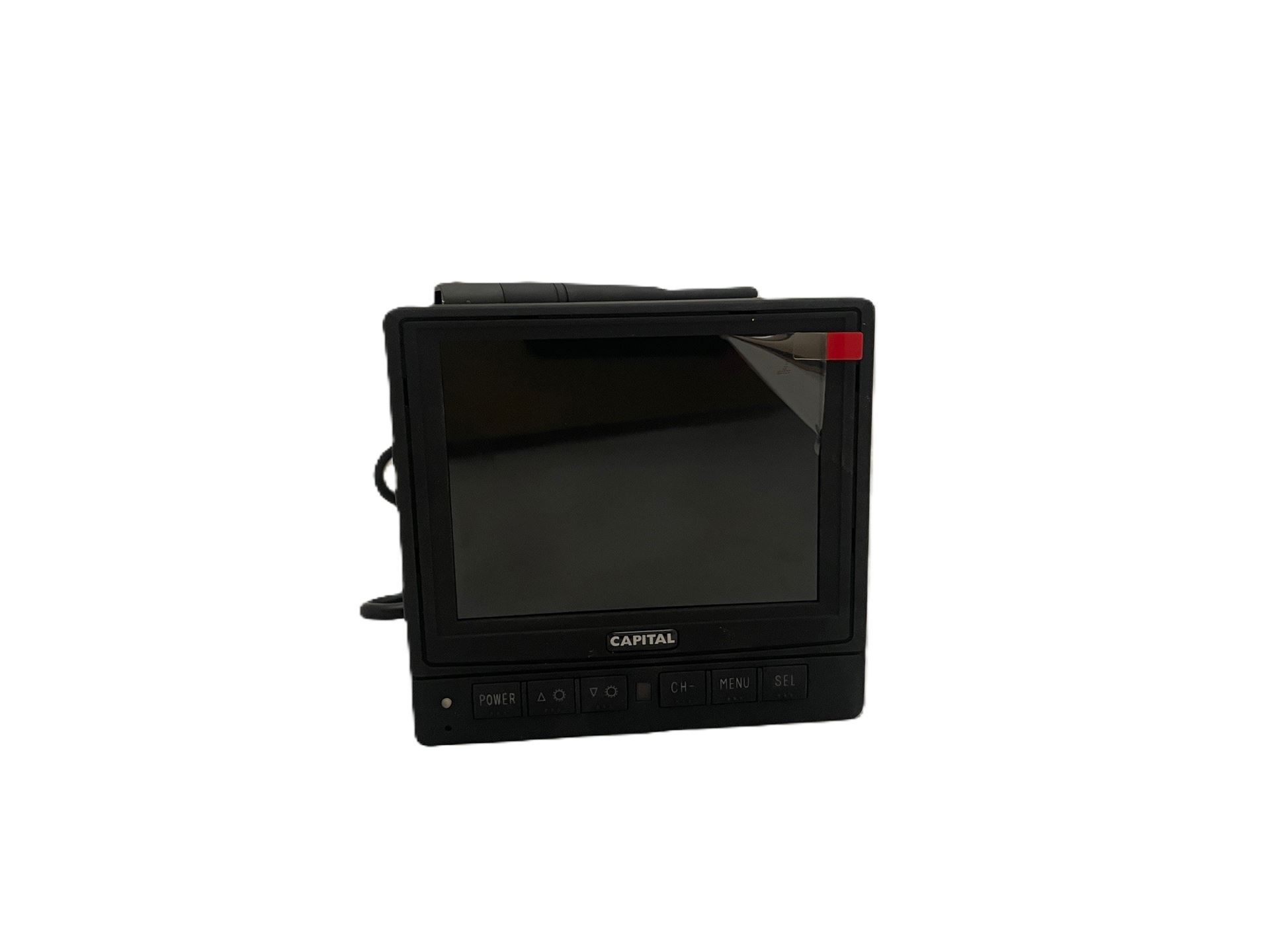

Monitor:
Transmission frequency: 2400~2483MHz
Range: 120m
Operating voltage: DC 10-32 volts
Power consumption: 8W
Audio power consumption: 1W
LCD: 5.6” colour
Resolution: 640 x 3RGB x 480

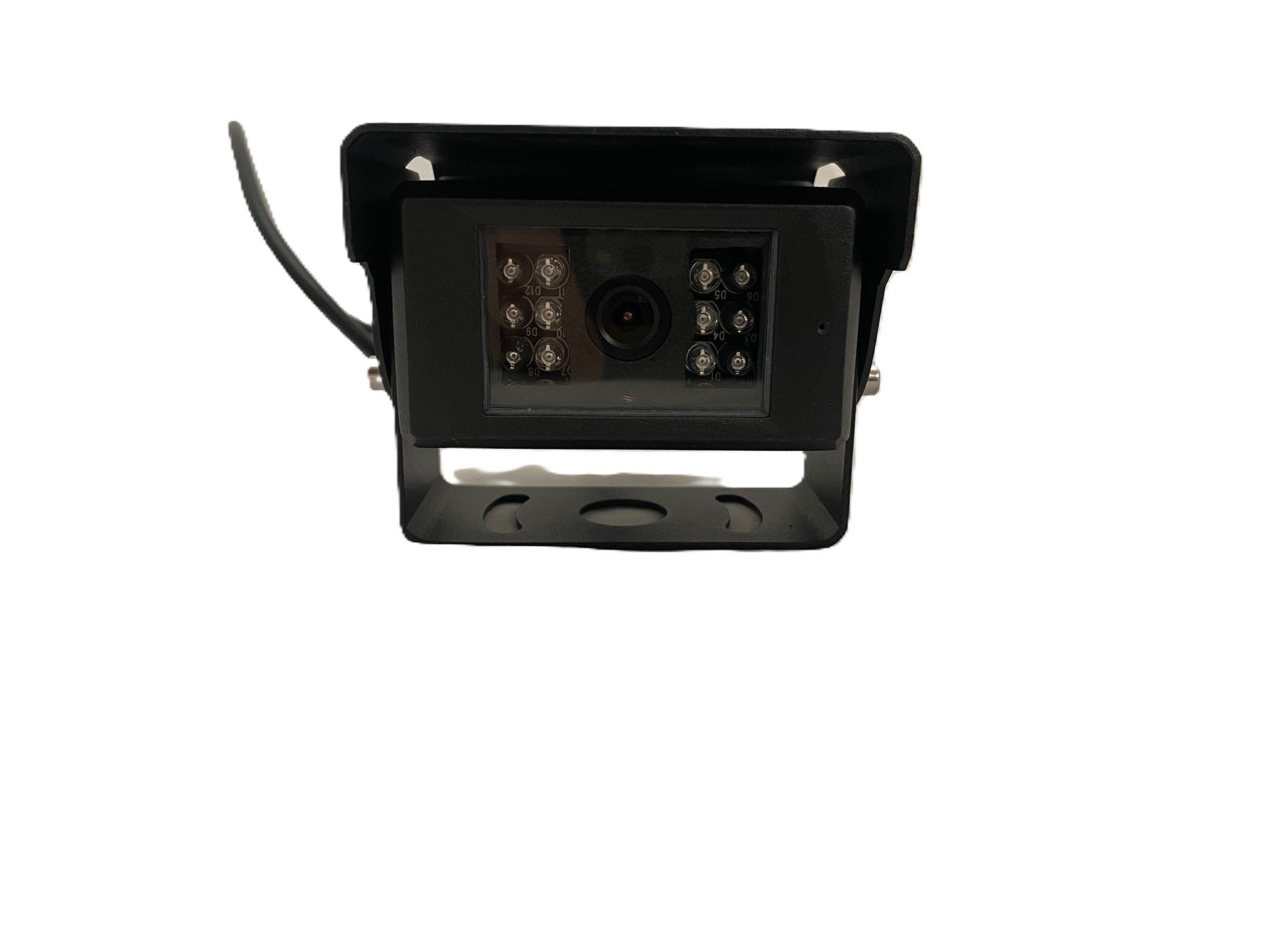

Camera:
Operating voltage: DC 12 volts
Power consumption: DC 12 volts 2W
Picture sensor: 1/3” CCD sensor
Light sensitivity: 0.5 lux
Operating temperature: -20°C to 70°C
Horizontal viewing angle: approx. 120°
Viewing Angle: U50, D70, R/L70
