Capital CRV700W Wireless Camera System
The need for full observation when operating large working vehicles like agricultural and constraction machinery is ever growing, with greater focus on operator safety and the reduction of waste. The Capital range of observation camera systems have been designed specifically for large vehicles operating in tough working conditions to provide a good quality image, whatever the job.
The monitors are designed to be able to withstand the heavy vibrations experienced on vehicles working on rough terrain, and the cameras are built with a fully weatherproof aluminium housing to function in all conditions - day or night!
Our systems have been used for operations including vehicle reversing, trailer hitching, bailing, wagon loading, seed drilling, harvester maneuvering, pallet storing, safety and security.

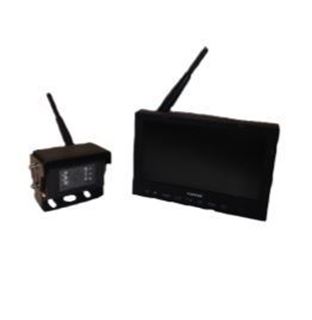

The Capital CRV700W Wireless Camera System provides a 7" LCD HD full colour monitor that can be installed anywhere within the cab with it's self-adhesive monitor mount. The high-definition picture provides a higher picture clarity, allowing the operator a crisper view of their activities. The camera has full night-vision capabilities to allow for working any time of the day, and the aluminium housing provides full weather protection.
The kit comes complete with a monitor, camera, 20m camera cable, power cables, mounting brackets and remote control.
CRV700W Specifications:
Monitor:
- 7” colour LCD monitor
- 12-32V operating voltage
- 4 channel camera AV input
- Automatic or manual camera switching
- Mirror or real view picture option
- Brightness/contrast & colour adjustment
- Reversed view camera picture
- Built in speaker
Camera:
- Cameras avilable using 4 channels
- Built in transmitter
- Wide angle optics
- High resolution with 250,000 pixels
- Electronic brightness adjustment
- 12-32V operating voltage
CRV700W Technical Data:
Monitor:
- Transmission frequency: 2400-2483MHz
- Distance: 238m (barrier free)
- Operating voltage: DC 12-32 volts
- LCD: 5.6" colour
- Resolution: 960 x 234 lines
- Power consumption: DC 12 volts 8W
Camera:
- Operating Voltage: DC 12-32 volts
- Power Consumption: DC 12 volts 2W
- Picture Sensor: 1/3" CCD sensor
- Horizontal Viewing Angle: 120°
- Resolution: 420 horizontal lines
- Light Sensitivity: 0.5 lux
- **NOTE** power still needs to be supplied to the camera itself. This can be fed from a small power supply such as sidelights or brake lights
