Capital CRV900AHD Camera System
The need for full observation when operating large working vehicles like agricultural and constraction machinery is ever growing, with greater focus on operator safety and the reduction of waste. The Capital range of observation camera systems have been designed specifically for large vehicles operating in tough working conditions to provide a good quality image, whatever the job.
The monitors are designed to be able to withstand the heavy vibrations experienced on vehicles working on rough terrain, and the cameras are built with aluminium housing to function in all conditions - day or night!
Our systems have been used for operations including vehicle reversing, trailer hitching, bailing, wagon loading, seed drilling, harvester maneuvering, pallet storing, safety and security.

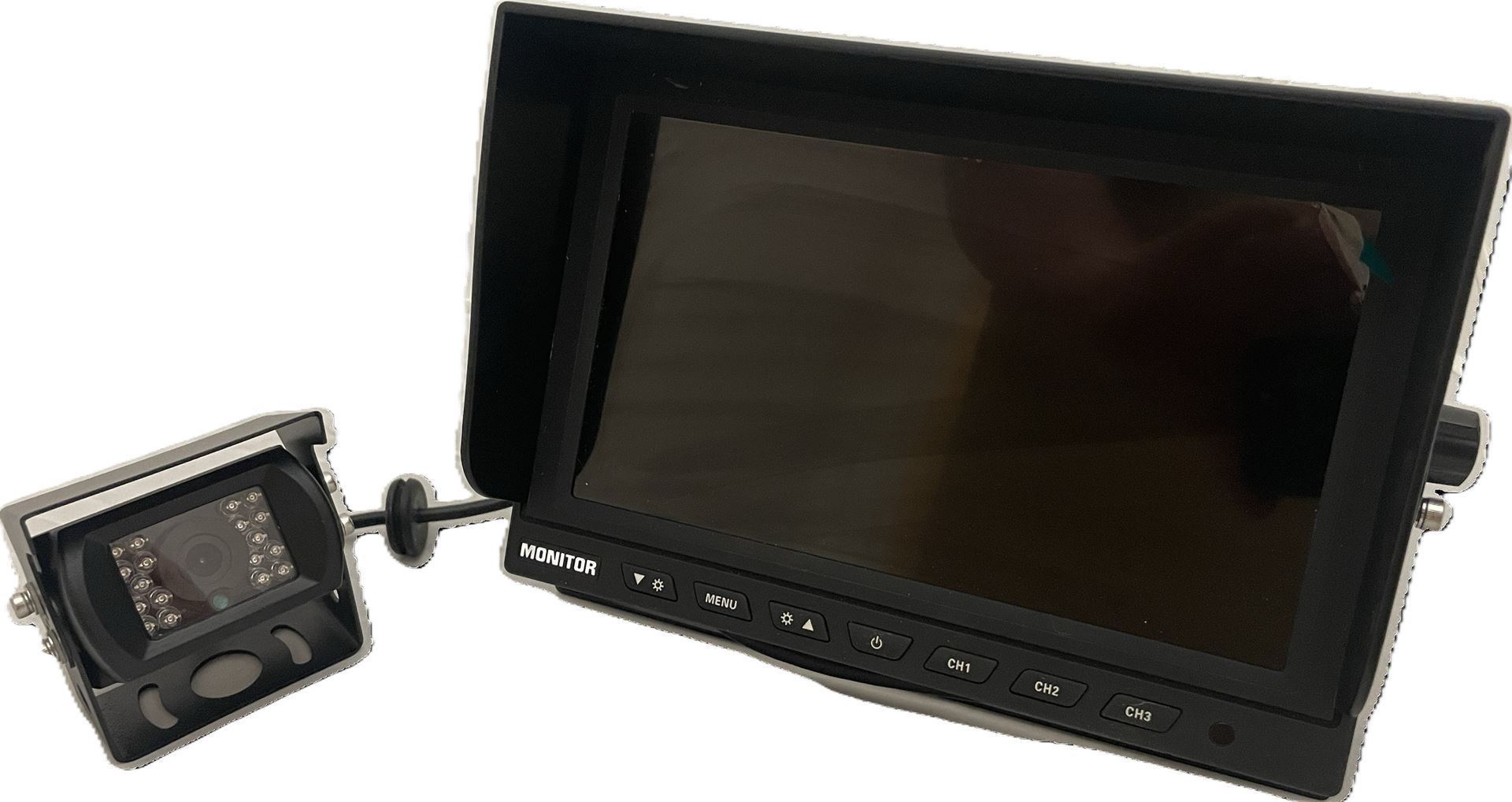

The Capital CRV900AHD Camera System is ideal for smaller, more lightweight working vehicles, such as pick-up trucks, horse boxes, commercial vehicles, motorhomes etc. It provides a 9" LCD full colour monitor that can be installed anywhere within the vehicle with it's self-adhesive monitor mount. The cameras come in various differnt forms, suitable for different environments.
The kit comes complete with a monitor, camera, 20m camera cables, power cables and mounting brackets.
CRV900AHD Specifications:

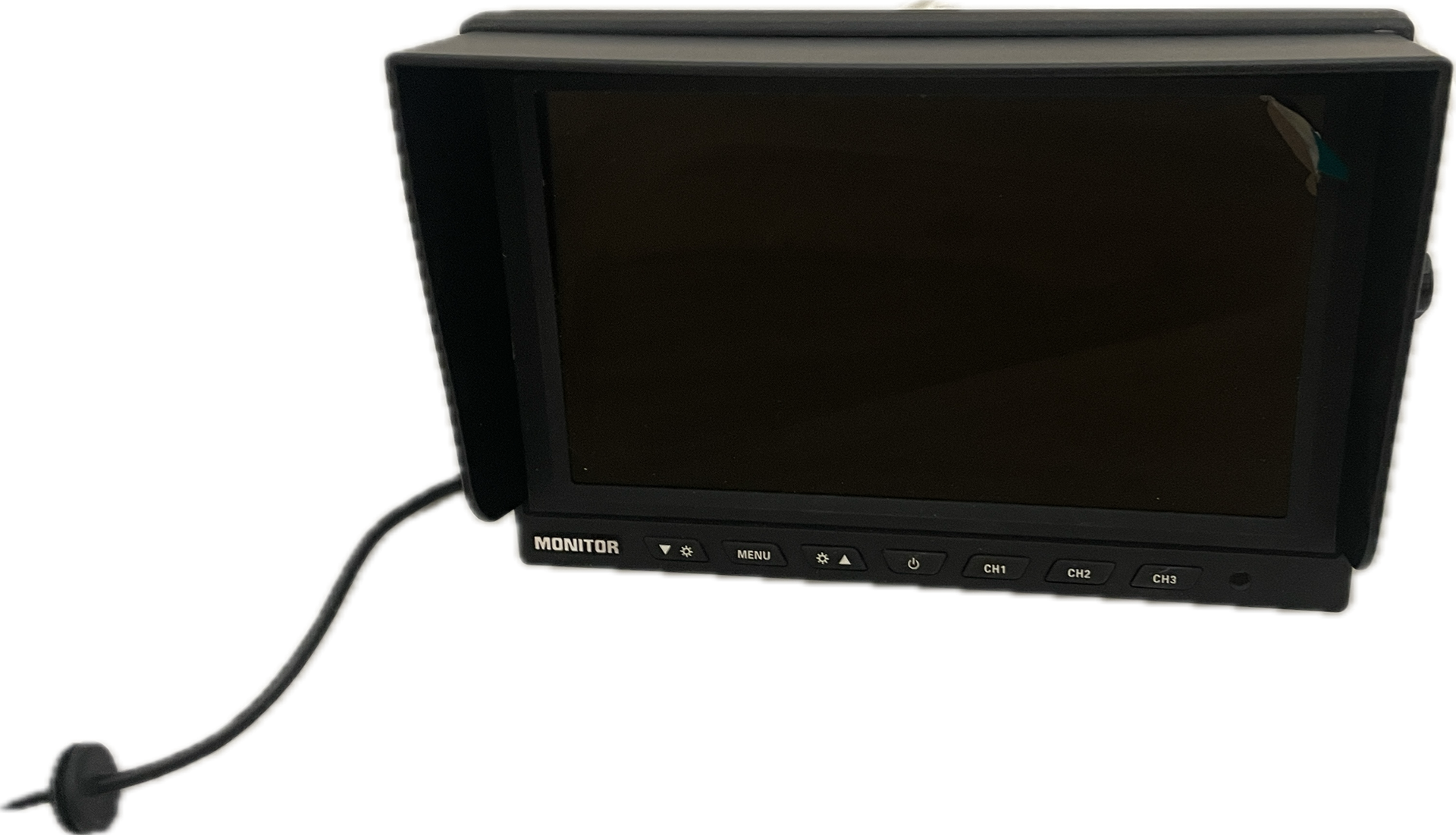

Monitor:
- 9” widescreen LCD monitor
- 4 camera inputs
- automatic camera switching facility
- large buttons for easy operation
- brightness, contrast, colour & volume adjustment
- reverse or real view picture
- remote control
- 12-24V operating voltage
- built in speaker

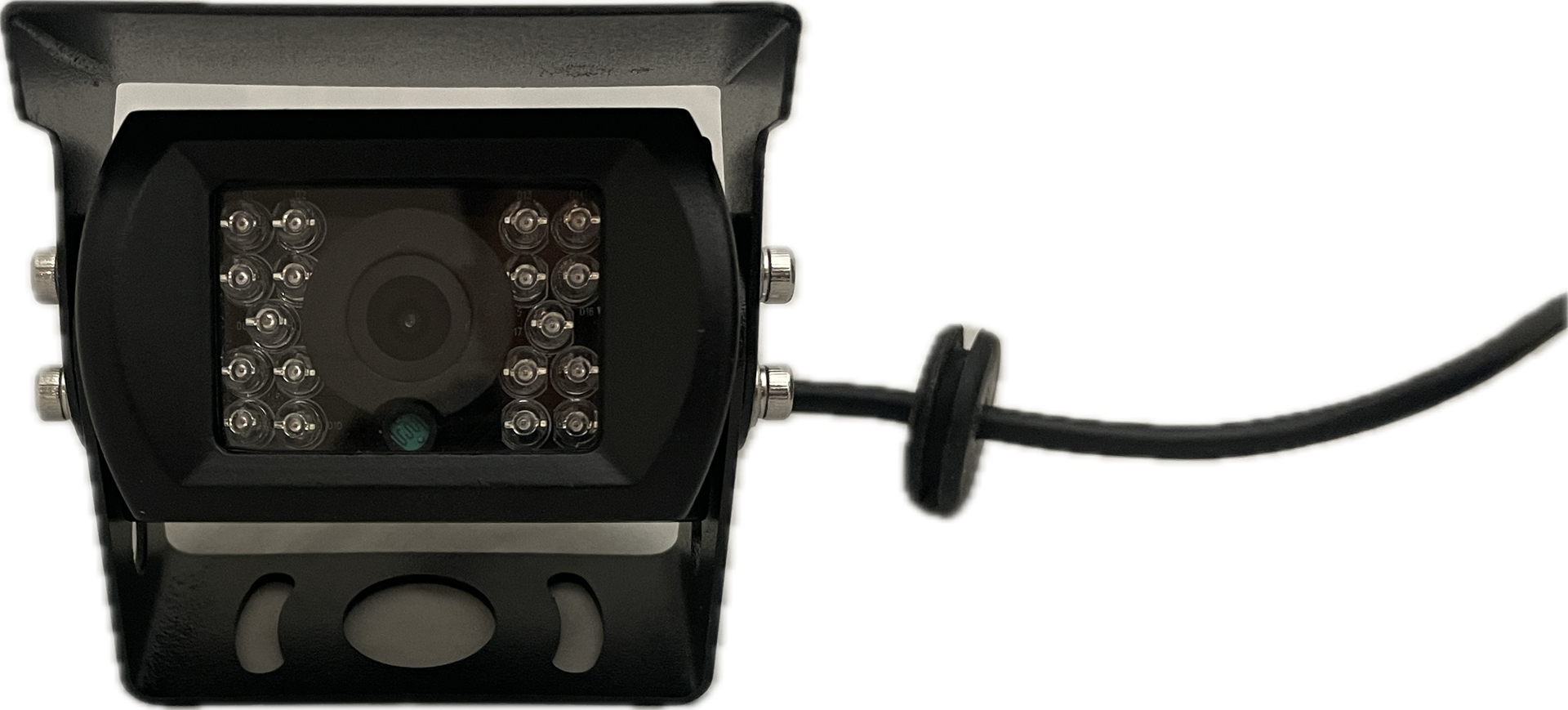

Camera:
- aluminium weatherproof housing with sun shield
- wide angle optics
- high resolution with 250,000 pixels
- LED infra-red support for improved visibility in poor light conditions
- electronic brightness adjustment
- integrated microphone
- 20M cable
CR900AHD Technical Data:
Monitor:
Technical Data
- Audio output: 1W
- Power consumption: approx. 10W
- Resolution: 640 x RGB x 234
800 x RGB x 480
- Contrast ratio: 250:1
- Aspect Ratio: 16:9
- Brightness: 450cd/m²
- Operating temperature: -30ºC to 60ºC, RH90%
Camera:
Technical Data
- 1/3" sharp sensor CCD camera
- Viewing angle: 120º
- Power consumption: 300mA
- Effective pixels: 512 x 582
- Horizontal resolution: 420 lines
- White balance: AUTO
- Operating temperature: -20ºC to 60ºC, RH95%
