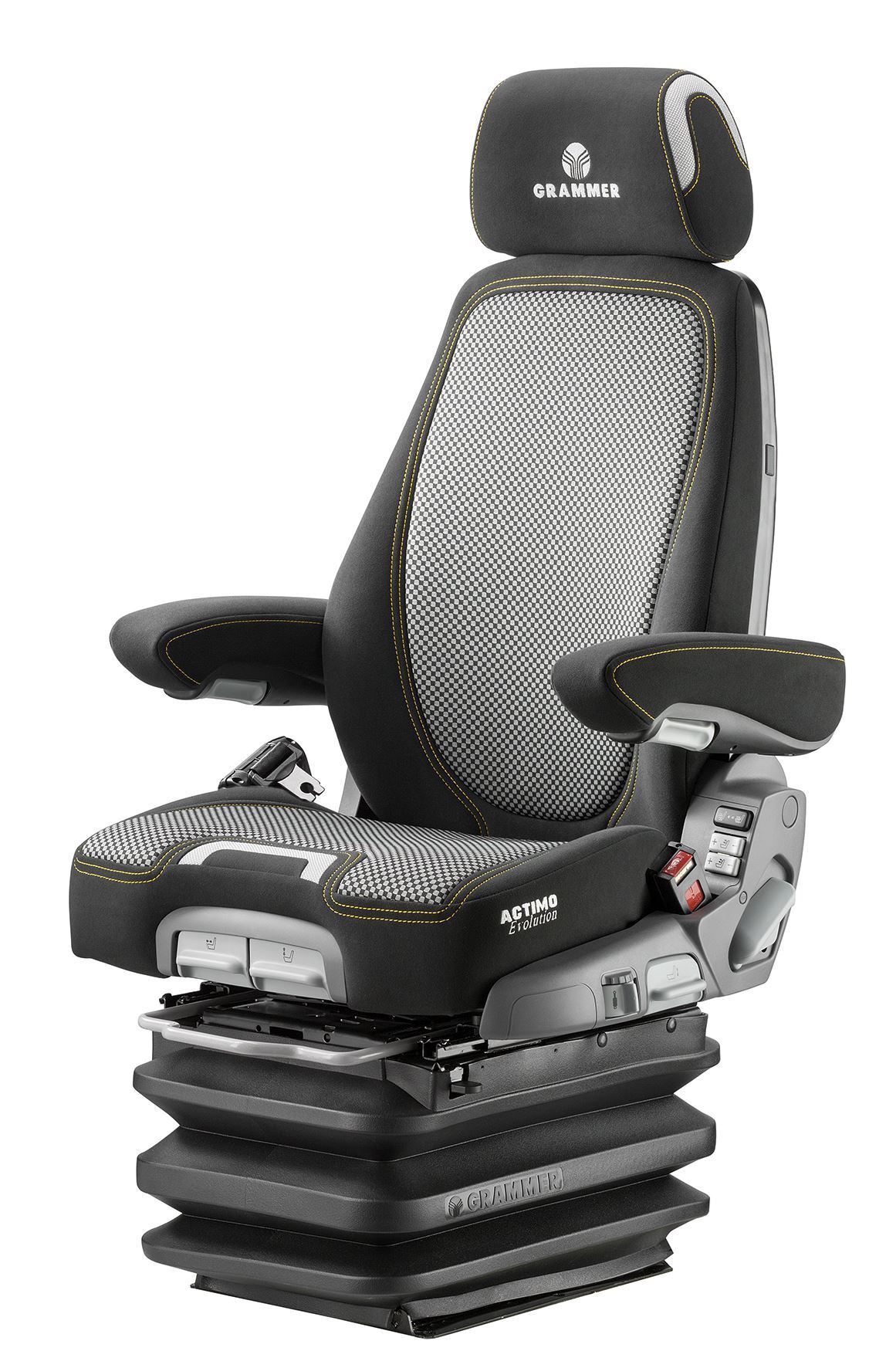

Actimo Evolution (Dumper/Sprayer)

Top of the range air suspension seat for construction machinery, complete with automatic electronic weight adjustment for each user
Manufacturer: Grammer

Grammer Actimo Evolution
ideal for dump trucks and agricultural sprayers

The premium-comfort seat for wheel loader and excavators. Equipped with a low-frequency pneumatic suspension to compensate vibrations and jolts even more effectively, plus a fore & aft isolator to minimise vibrations in driving direction. This especially user-friendly model has been optimally equipped for outstanding ergonomics. It makes operating a construction machine smoother, safer and much easier on the back. This will be enabled by the proven Grammer "Design for Use" philosophy, by the operator restraint system, by active electronic setting of the seat to the user's weight, and by active seat climate control as a special feature.

Specifications:

  • Low-frequency air suspension (12V compressor)
  • APS (Automatic Positioning System)
  • Adjustable shock absorber
  • 100mm vertical suspension stroke
  • Electronic weight adjustment 50-130kg
  • Pneumatic height adjustment - 80mm
  • Fore & aft adjustment - 210mm
  • Fore & aft isolator
  • Left-hand or forward-mounted controls
  • Active climate system
  • Pneumatic lumbar support
  • Operator presence switch
  • Height-adjustable armrests
  • Headrest
  • Adjustable backrest angle
  • Retractable seatbelt
  • Seat heating
  • Document box
  • Adjustable seat cushion depth and angle
  • 550mm or 490mm seat cushion width
  • Variable options for excavator and dumper applications

Accessories:

  • Control pod adapters
  • 180° or 360° turntable
  • Adapter cable (12V or 24V)



Grammer Actimo Evolution
ideal for dump trucks and agricultural sprayers

The premium-comfort seat for wheel loader and excavators. Equipped with a low-frequency pneumatic suspension to compensate vibrations and jolts even more effectively, plus a fore & aft isolator to minimise vibrations in driving direction. This especially user-friendly model has been optimally equipped for outstanding ergonomics. It makes operating a construction machine smoother, safer and much easier on the back. This will be enabled by the proven Grammer "Design for Use" philosophy, by the operator restraint system, by active electronic setting of the seat to the user's weight, and by active seat climate control as a special feature.

Specifications:

  • Low-frequency air suspension (12V compressor)
  • APS (Automatic Positioning System)
  • Adjustable shock absorber
  • 100mm vertical suspension stroke
  • Electronic weight adjustment 50-130kg
  • Pneumatic height adjustment - 80mm
  • Fore & aft adjustment - 210mm
  • Fore & aft isolator
  • Left-hand or forward-mounted controls
  • Active climate system
  • Pneumatic lumbar support
  • Operator presence switch
  • Height-adjustable armrests
  • Headrest
  • Adjustable backrest angle
  • Retractable seatbelt
  • Seat heating
  • Document box
  • Adjustable seat cushion depth and angle
  • 550mm or 490mm seat cushion width
  • Variable options for excavator and dumper applications

Accessories:

  • Control pod adapters
  • 180° or 360° turntable
  • Adapter cable (12V or 24V)
