Actimo XL w/ 3-Point Belt

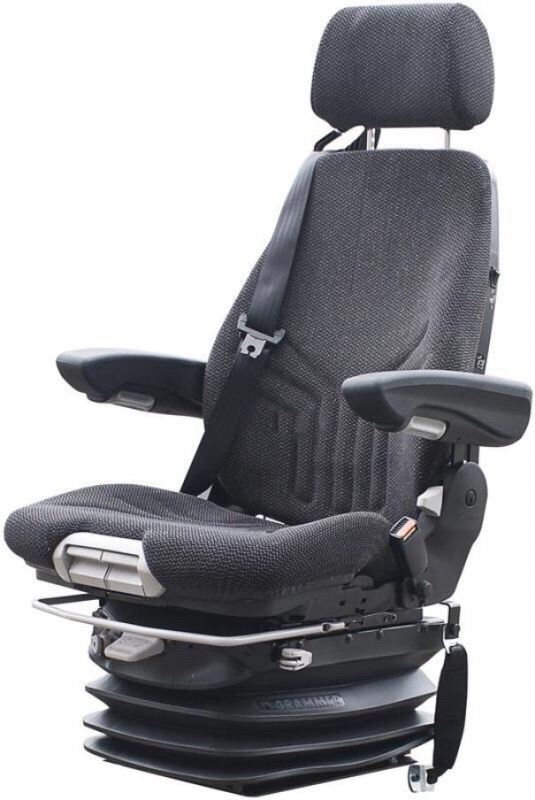

Grammer Actimo XL with 3-Point Seat Belt

The high-comfort seat for large construction machinery. The pneumatical suspension with APS (Automatic Positioning System) ensures that contact with the pedals remains unaffected. The integrated fore & aft isolator reduces horizontal vibrations in the driving direction. The passive climate system (active carbon layer) improve the seat climate. Experience and use operating comfort with optimum ergonomical user guidance.

Specifications:

• Air suspension (12V compressor)
• APS (Automatic Positioning System)
• Adjustable shock absorber
• 100mm vertical suspension stroke
• Automatic weight adjustment 50-130kg
• Pneumatic height adjustment - 80mm
• Fore & aft adjustment - 210mm
• Fore & aft isolator
• Forward-mounted controls
• Integrated 3-point seat belt
• Passive climate system
• Pneumatic lumbar support
• Adjustable backrest angle
• Adjustable seat cushion depth and angle
• 490mm seat cushion width

Accessories:

• Height-adjustable armrests
• Seat heating
• Operator presence switch
• Headrest
• Document box
