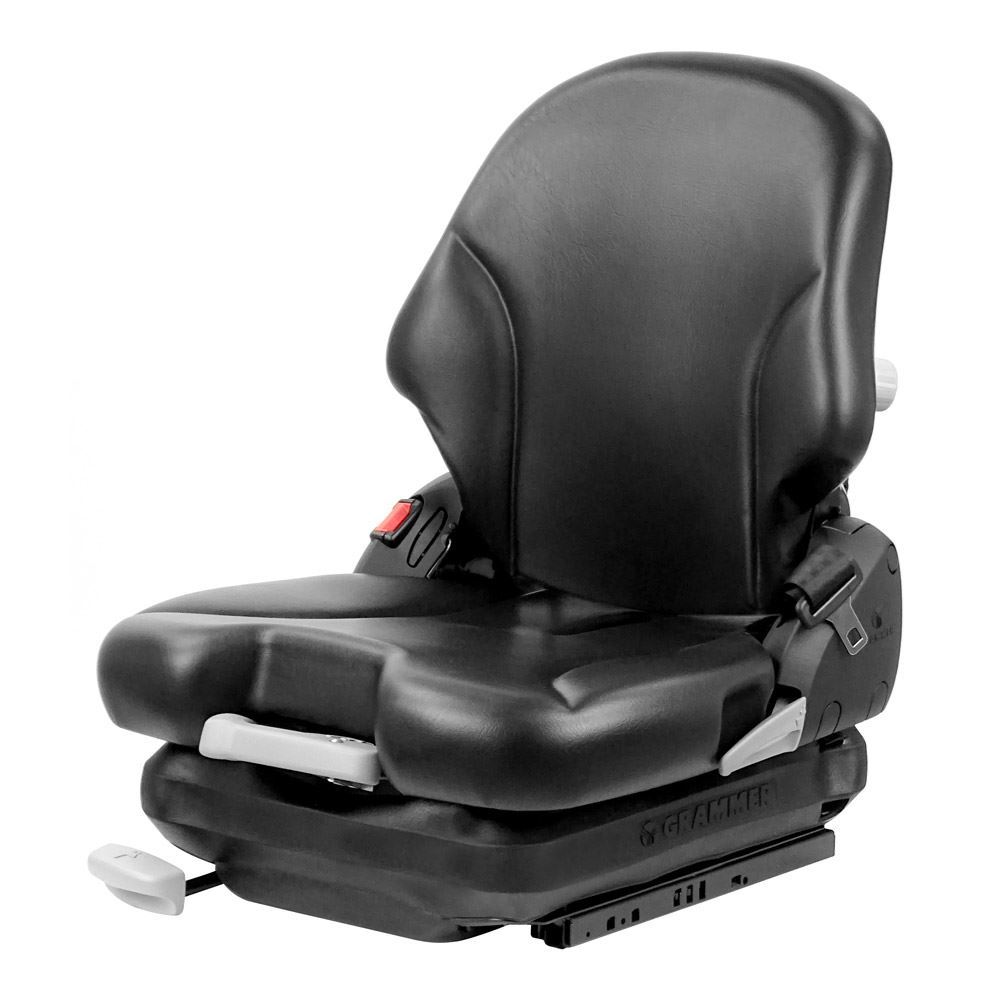

Grammer MSG65/531

Grammer MSG65/531

The MSG65 suspension is a worldwide unique, innovative seating concept. It is the first seat for forklift trucks and construction machines with a low-profile suspension, optionally available with pneumatic or mechanical suspension and quick weight adjustment. The Grammer MSG65/531 supports you also when driving backward: the asymmetrical backrest is tapered on the right side which makes it easier to turn around in the seat. As the worldwide first low-profile compact seat the MSG65/531 is equipped with a lumbar support for the sensitive lumbar region. The backrest height is adjustable in 13 steps up to 170 mm, according to the body height or work situation.

The Grammer MSG65/531 seat is often found originally fitted to a number of Linde trucks.

Specifications:

• Low-profile mechanical suspension
• Non-adjustable shock absorber
• 60mm suspension stroke
• Mechanical quick weight adjustment - 50-170kg
• 210mm fore & aft adjustment
• Mechanical lumbar support
• Adjustable backrest angle -5 to +30°
• Retractable belt
• Operator presence switch
• Black vinyl

Accessories:

• Armrests
