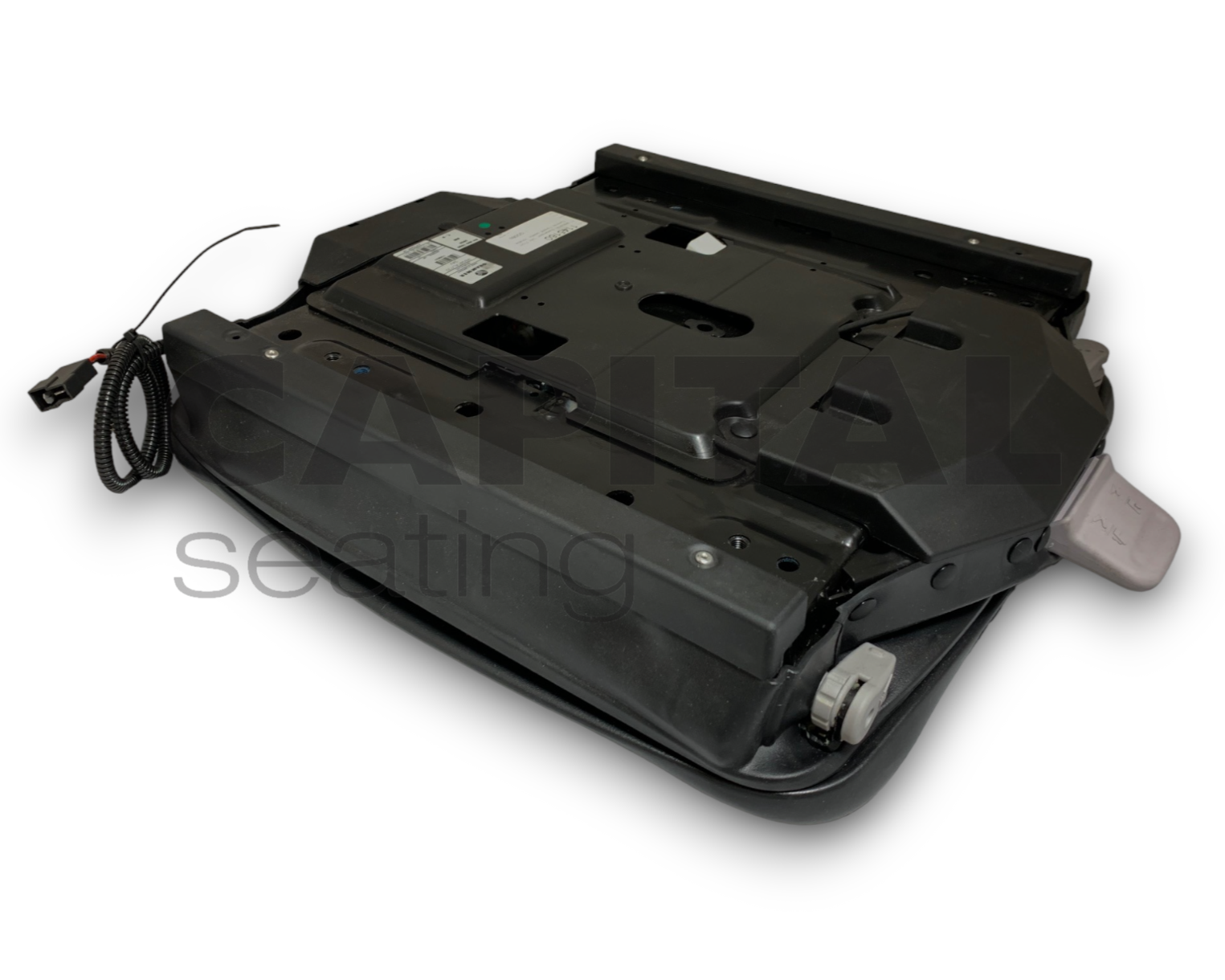

Grammer MSG97AL Suspension

Grammer MSG97AL Suspension -

Premium Grammer air suspension MSG97AL unit, suitable as a replacement part for original fitment Grammer seats, or to updgrade an exisiting Grammer seat suspension. It is an extra-wide heavy-duty suspension commonly found on large construction machinery, and benefits from a low-frequency system, to provide optimal vibration absorption. It also has a variable damper and an integrated height adjustment.

You can identify your Grammer seat model by viewing the silver label located either on the back of your Grammer seat, or on the top face of the suspension unit. The model number will provide the type of suspension you have.

Specifications:

• Low-frequency extra-wide air suspension (24V compressor)
• APS (Automatic Positioning System)
• Extra-wide rugged suspension
• Adjustable shock absorber
• 100mm vertical suspension stroke
• Automatic weight adjustment 50-130kg
• Pneumatic height adjustment - 80mm
• Fore & aft isolator
