Primo M

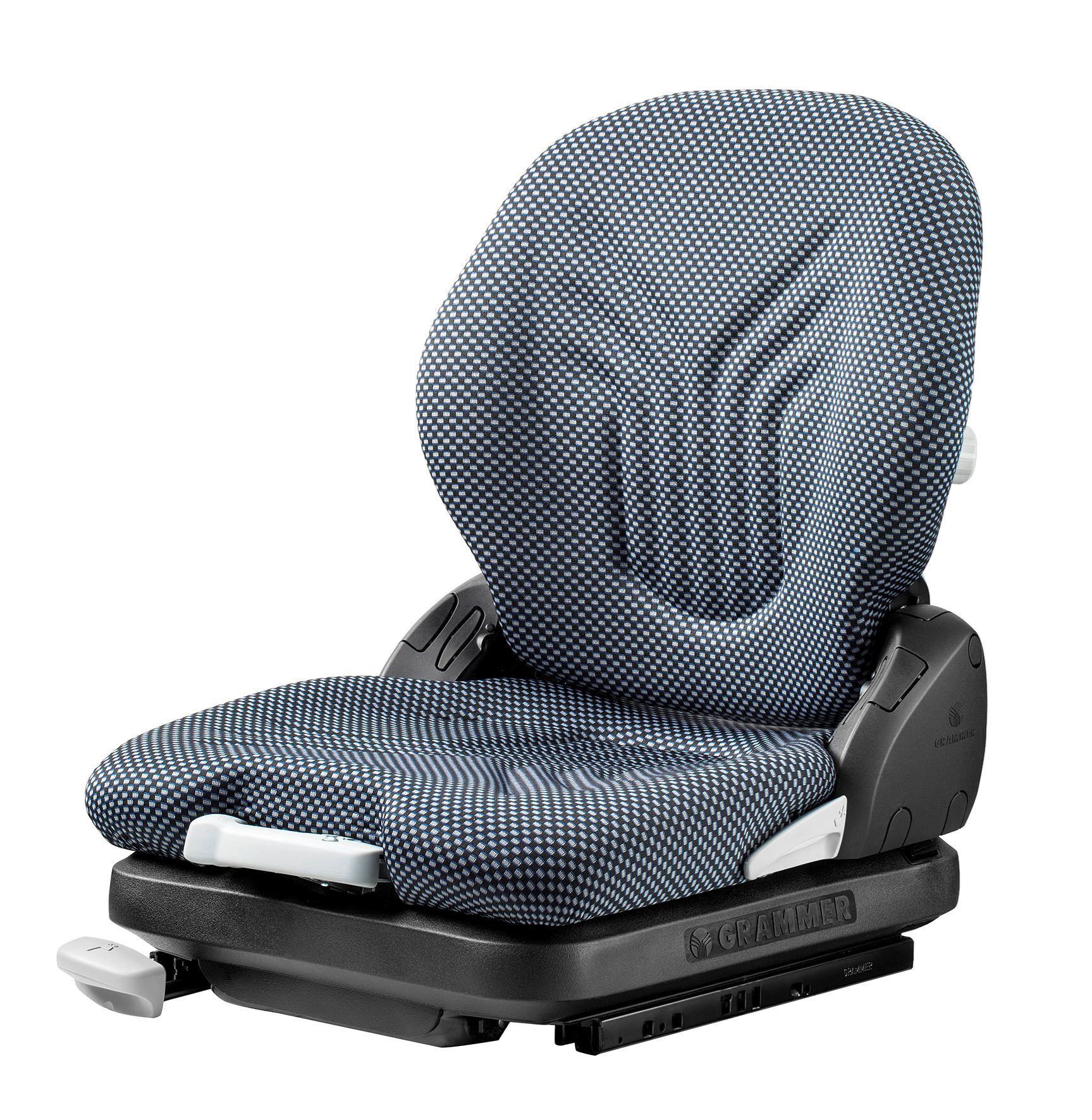

Grammer Primo M

Sitting comfort in new dimensions for forklift trucks and compact construction machines, the Primo is a worldwide unique, innovative seating concept. It is the first seat for forklift trucks and construction machines with a low-profile suspension, optionally available with pneumatic or mechanical suspension and quick weight adjustment. The ergonomic seat cushions and the height and angle adjustable armrests support the body as optimal as the backrest, where the angle is adjustable from -5° to +30°. As the worldwide first low-profile compact seat the Primo is equipped with a lumbar support for the sensitive lumbar region.

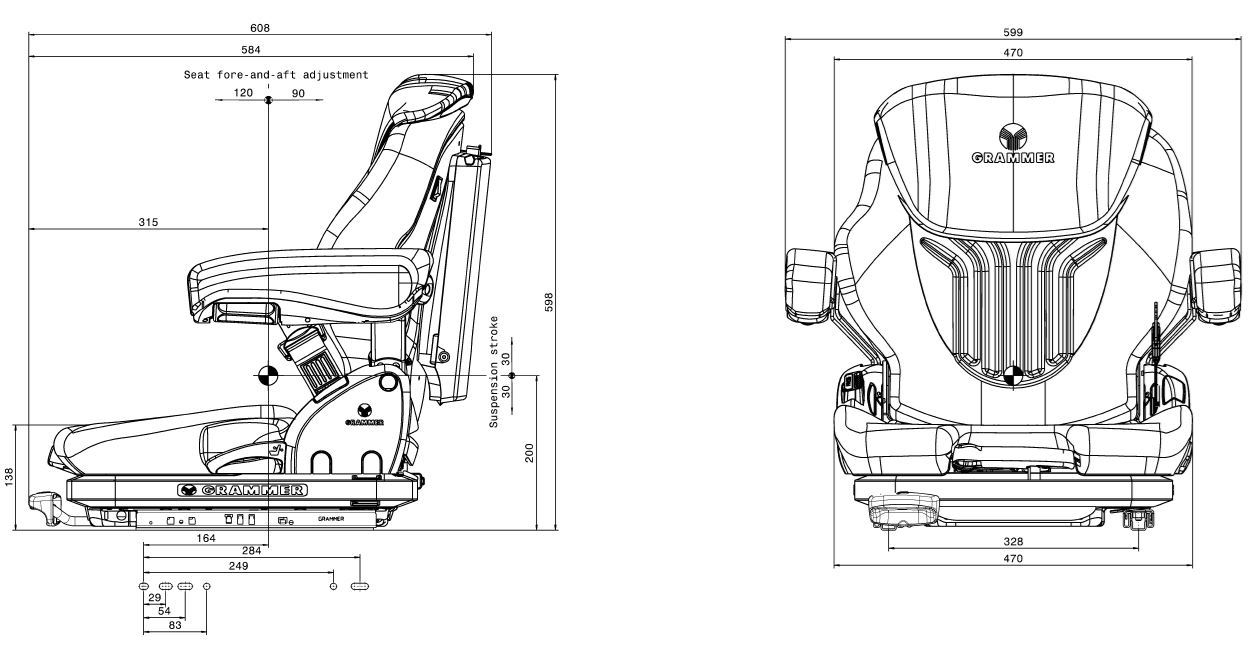

Specifications:

• Mechanical suspension
• Non-adjustable shock absorber
• 60mm suspension stroke
• Mechanical quick weight adjustment - 45-170kg
• 210mm fore & aft adjustment
• Mechanical lumbar support
• Adjustable backrest angle -5 to +30°
• 450mm seat cushion width

Accessories:

• Static or duo-sensitive retractable belt
• Armrests
• Insertable backrest extension
• Seat heating
• Operator presence switch
• Document box
