Primo XM Plus Seat

Grammer Primo XM Plus

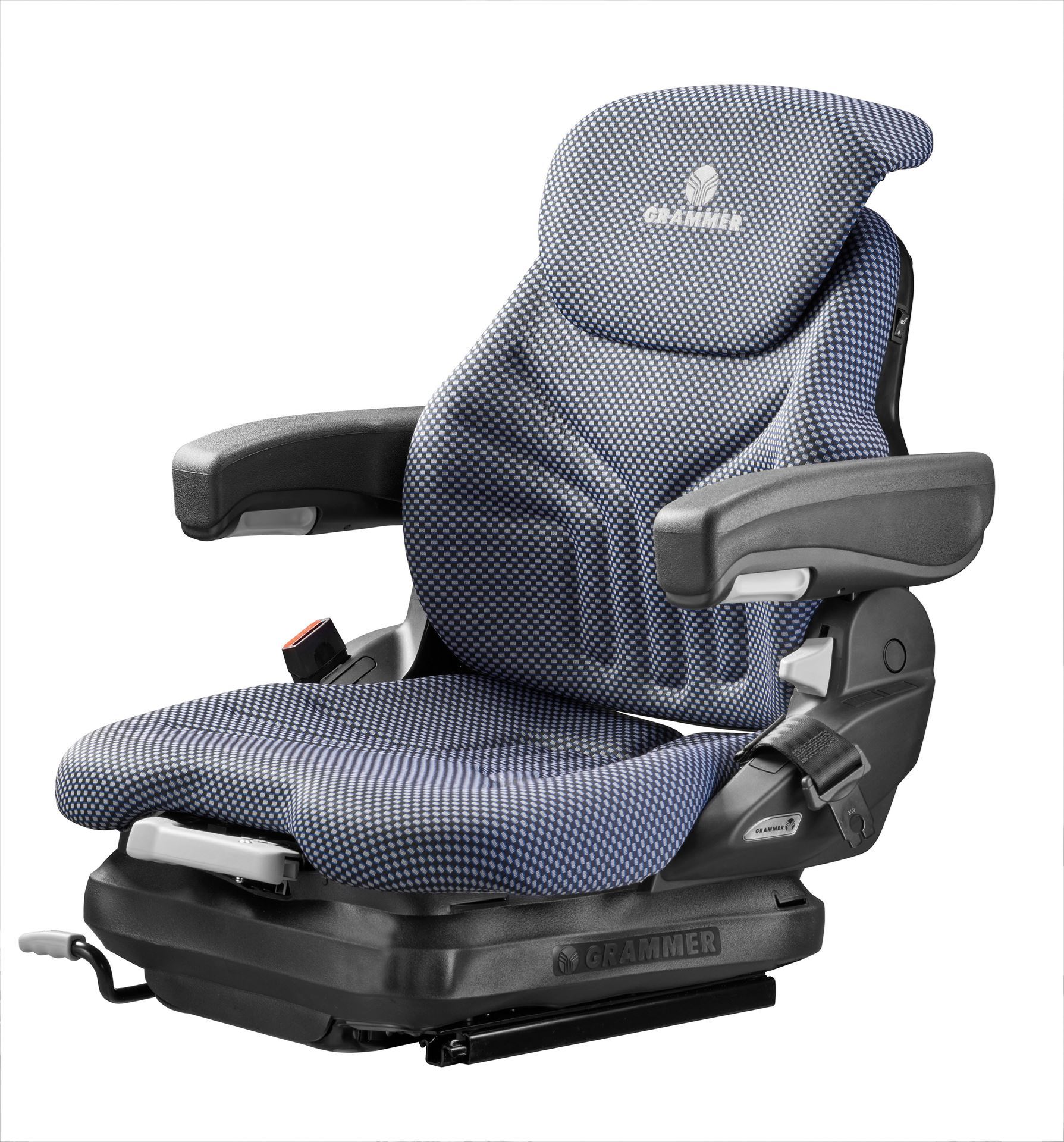

Sitting comfort in new dimensions for forklift trucks and compact construction machines The Primo is a worldwide unique, innovative seating concept. It is the first seat for forklift trucks and construction machines with a low-profile mechanical suspension. The broad, ergonomic seat cushions and the height and angle adjustable armrests optimally support the body, and the backrest angle is adjustable from -5° to +30°. The Primo supports you also when driving backward: the asymmetrical backrest is tapered on the right side which makes it easier to turn around in the seat. As the worldwide first low-profile compact seat the Primo is equipped with a lumbar support for the sensitive lumbar region. The backrest height is adjustable in 13 steps up to 170 mm, according to the body height or work situation.

Specifications:

• Mechanical suspension
• Non-adjustable shock absorber

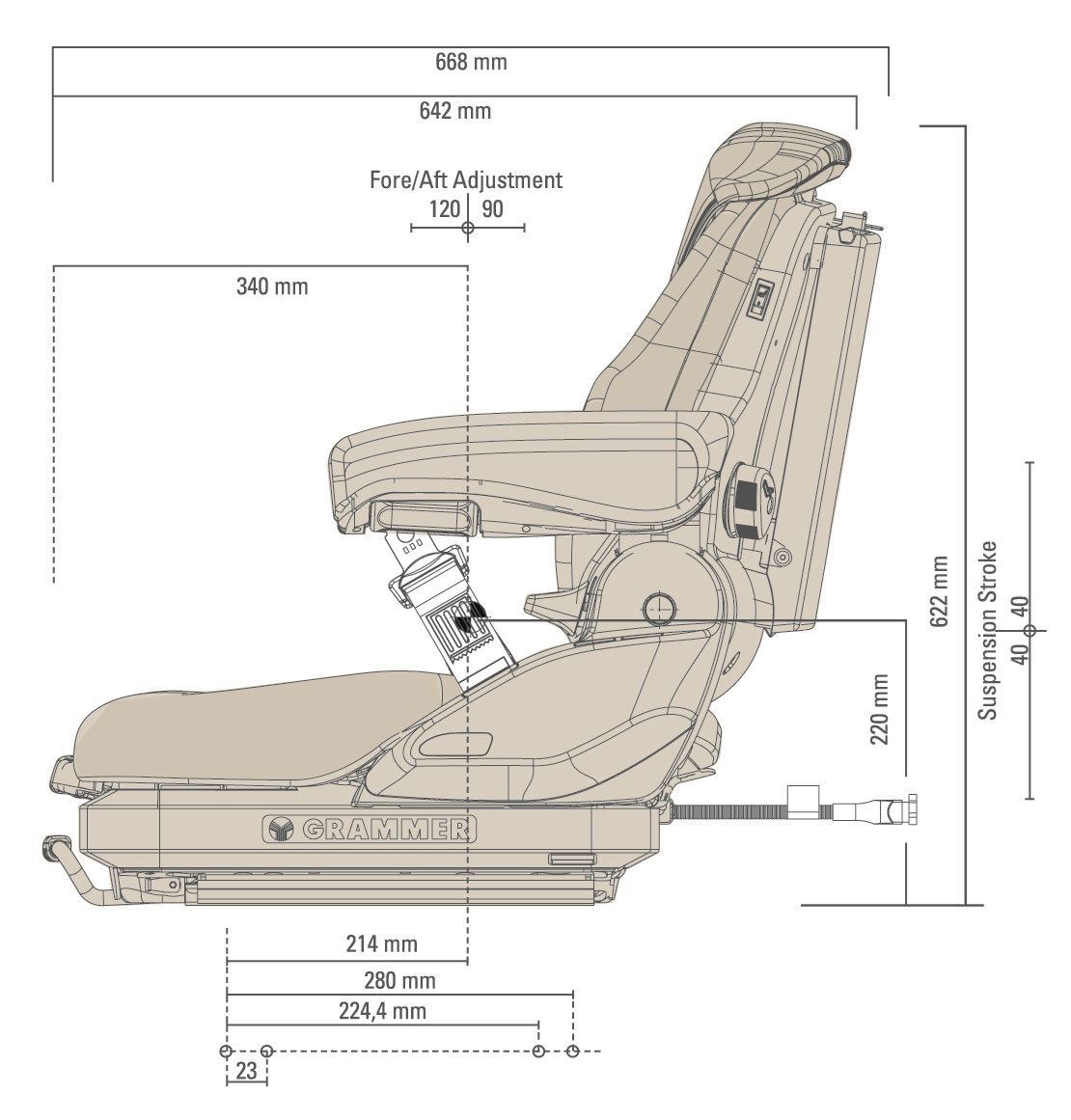

• 80mm suspension stroke
• Mechanical quick weight adjustment - 45-170kg
• 210mm fore & aft adjustment
• Mechanical lumbar support
• Adjustable backrest angle -5 to +30°
• Duo-sensitive retractable belt

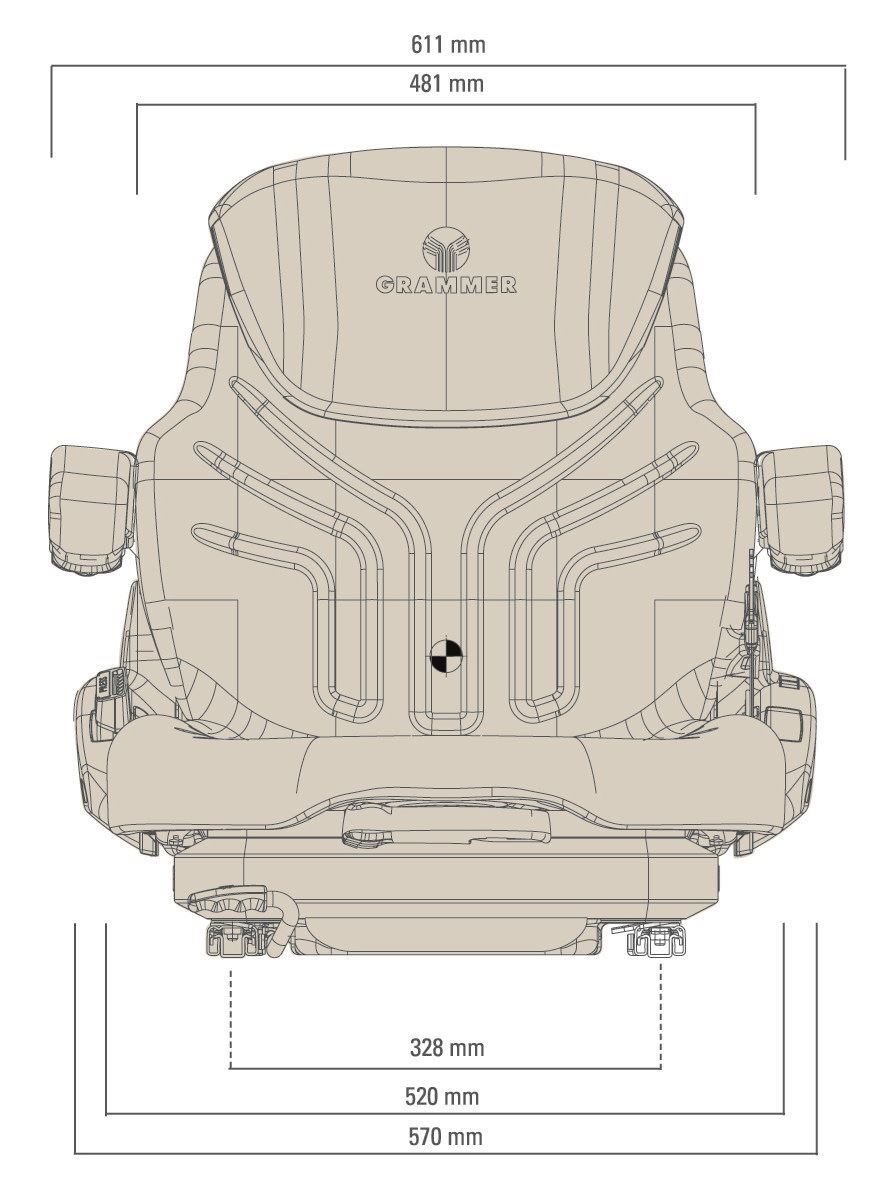

• 520mm seat cushion width
• Operator presence switch

Accessories:

• Armrests
• Insertable backrest extension
• Seat heating
• Document box
