61/K4

KAB 61/K4

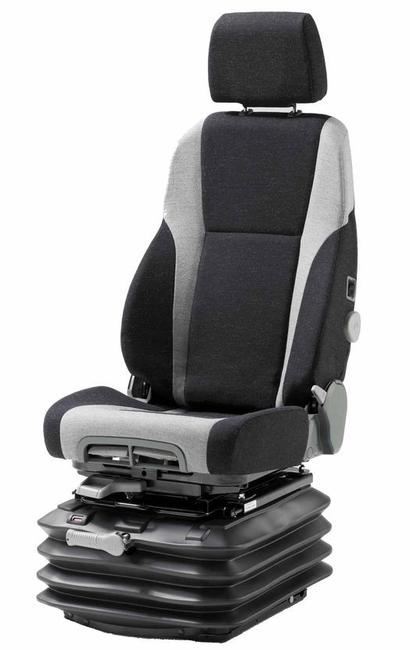

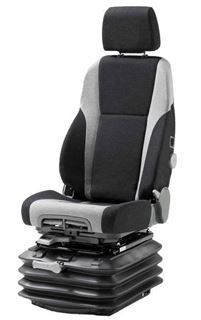

The 61/K4 is a high back mechanical suspension seat from the 600 series range. It is assembled with a wide platform for improved stability and reduced free-play in heavy duty applications. The adjustable seat base cushion and seat heating comes as standard, to offer exceptional driver comfort.

Specifications:

• Low natural frequency mechanical suspension
• 160mm vertical suspension stroke
• Manual adjustment for driver weight with extended weight range for operators of 50 - 175kg
• 60mm integral seat height adjustment
• Backrest angle adjustment
• Fore and aft adjustment - 160mm
• 5 position lumbar support
• Seat heating
• 50mm seat cushion length adjustment
• Seat tilt adjustment in 3 positions
• Adjustable headrest
• 50mm fore/aft isolator
• Constant Seat Index Point (SIP) through the use of a Positioning System Module (PSM)
• Meets 22.kN seat belt requirements without tethers
• Achieves ISO 7096 seat performance for construction vehicles in categories EM1, EM3, EM4, EM5, EM6 and EM8

Options:

• Comfort armrests
• Retractable lap belt to ISO 6683 & SAE J386 (15kN)
