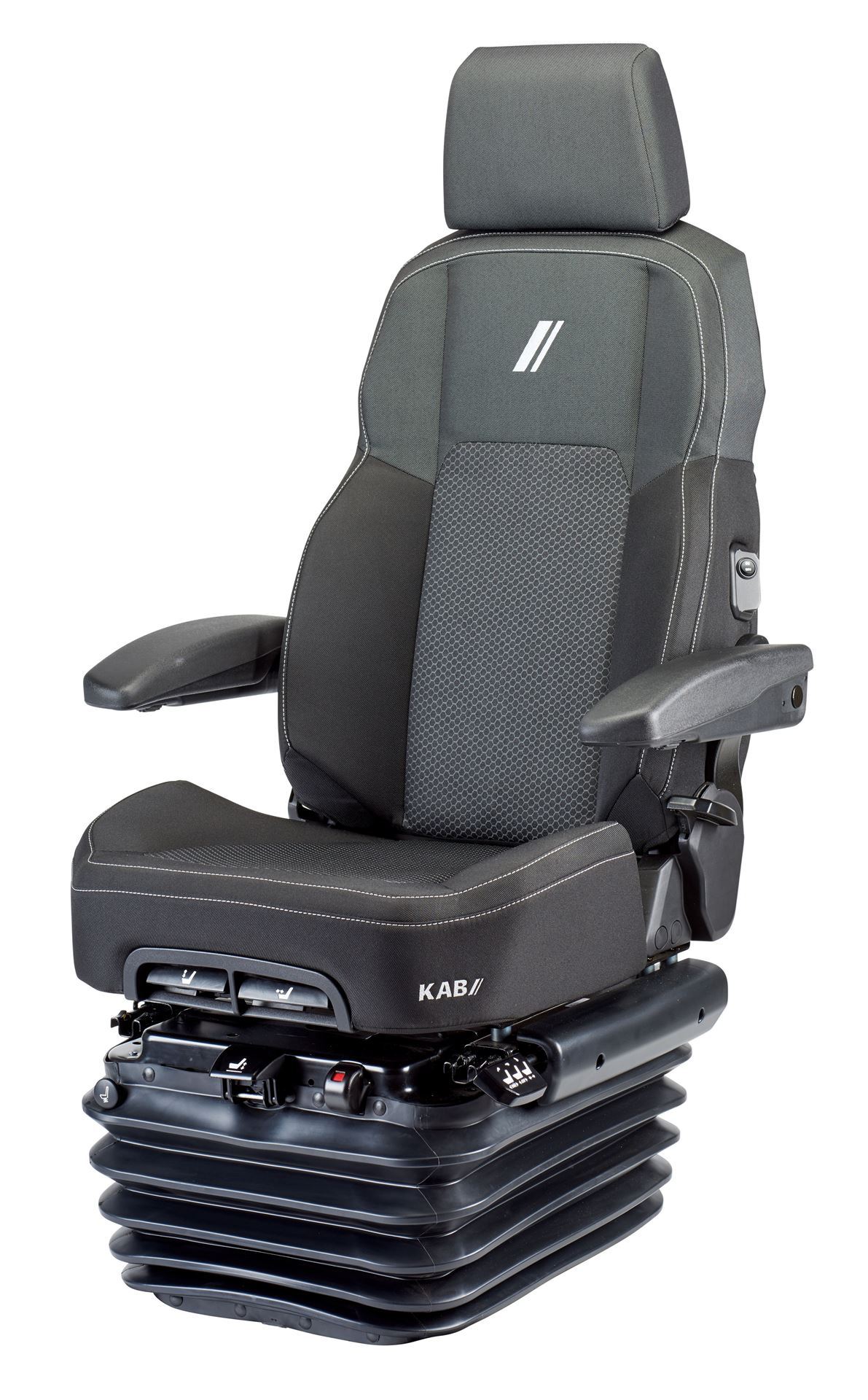

SCIOX Super High

Deluxe air suspension seat with a high backrest for all variants of agricultural machinery. Engineered with maximum durability and sculpted cushions to maintain driver comfort all day long
Manufacturer: KAB Seating

KAB SCIOX Super High

The Super High is the high back seating option from the SCIOX range, suitable for spreader and sprayer vehicles. The seat offers a variable damping mechanism which benefits the driver by protecting them from harmful vibrations and a heater which helps to improve driver concentration and productivity.

The KAB SCIOX range can be supplied with dedicated mounting brackets for the attachment of the vehicle's original control arm, as well as specific installation kits for the fitment of the seat and power connections. Please enquire for more details.

Specifications:

  • Air suspension
  • 12V integral compressor
  • Low backrest
  • 100mm vertical suspension stroke
  • 75mm integral height adjustment
  • 50-120kg weight adjustment
  • Variable damper
  • Fore/aft isolator
  • 150mm slide rail adjustment
  • ±20° swivel for rear viewing
  • Adjustable armrests
  • Headrest
  • Mechanical lumbar support
  • Operator presence switch
  • Seat heating
  • Seat cushion length and tilt adjustment (50mm)
  • Backrest angle adjustment
  • Document pouch

Accessories:

  • Retractable lap belt

Installation Accessories:

  • Control arm mounting brackets for Case, CNH, Deutz, Fendt, Steyr, Valtra and more
  • Installation brackets for John Deere and more
  • Power cable connection kits for Deutz, Fendt, JCB, John Deere, Massey Ferguson and more



KAB SCIOX Super High

The Super High is the high back seating option from the SCIOX range, suitable for spreader and sprayer vehicles. The seat offers a variable damping mechanism which benefits the driver by protecting them from harmful vibrations and a heater which helps to improve driver concentration and productivity.

The KAB SCIOX range can be supplied with dedicated mounting brackets for the attachment of the vehicle's original control arm, as well as specific installation kits for the fitment of the seat and power connections. Please enquire for more details.

Specifications:

  • Air suspension
  • 12V integral compressor
  • Low backrest
  • 100mm vertical suspension stroke
  • 75mm integral height adjustment
  • 50-120kg weight adjustment
  • Variable damper
  • Fore/aft isolator
  • 150mm slide rail adjustment
  • ±20° swivel for rear viewing
  • Adjustable armrests
  • Headrest
  • Mechanical lumbar support
  • Operator presence switch
  • Seat heating
  • Seat cushion length and tilt adjustment (50mm)
  • Backrest angle adjustment
  • Document pouch

Accessories:

  • Retractable lap belt

Installation Accessories:

  • Control arm mounting brackets for Case, CNH, Deutz, Fendt, Steyr, Valtra and more
  • Installation brackets for John Deere and more
  • Power cable connection kits for Deutz, Fendt, JCB, John Deere, Massey Ferguson and more
