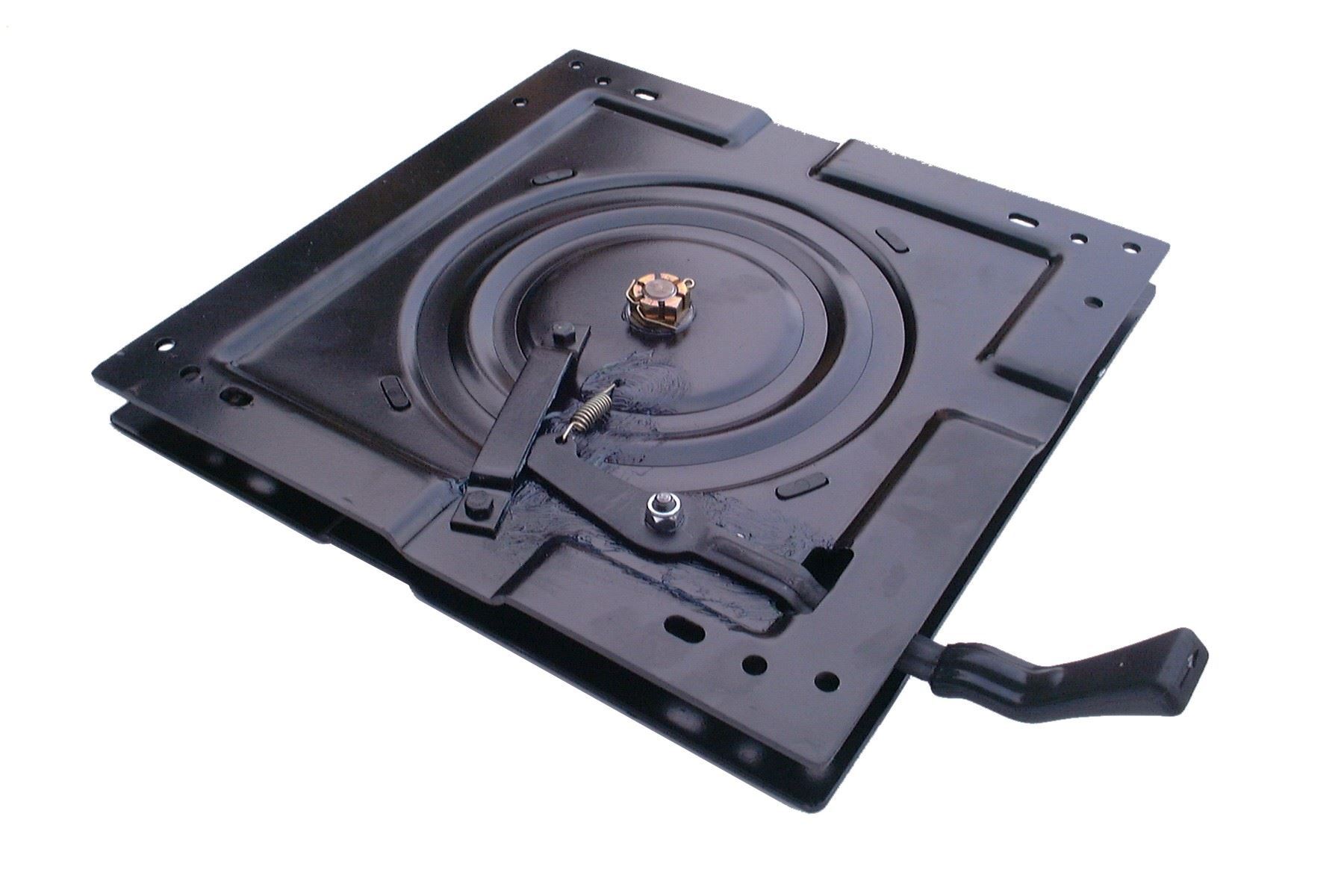

PI80 Turntable

PI80 Turntable

High quality and robust universal seat turntable, for use in conjunction with seats in commercial vehicles such as buses, lorries, coaches, campers, motorhomes, marine vessels and many others.

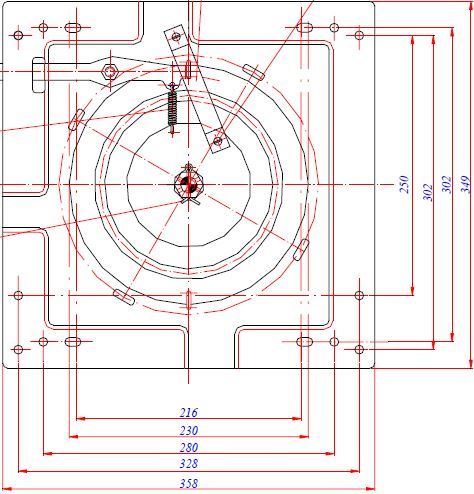

Suited to fit a variety of different applications. Please view the technical specifications document above to confirm dimensions and mounting points for suitability for your vehicle.

Provides stops at 20 degrees for a rotation of up to 180 degrees, in both directions.

Specifications:

• Width = 360mm
• Depth = 350mm
• Height = 30mm
• Hole Centres =
  • 223mm x 302mm
  • 280mm x 328mm
  • 328mm x 250mm

Please note that we do not possess a fitting guide for this unit, so we cannot confirm whether this will fit your particular application, due to the infinite number of mounting arrangements in vehicles. Please use the above technical document to identify all pre-drilled mounting points. Should your requirements not be listed, there is a possibility to drill out different mounting points, or potentially develop your own mounting bracket as an adapter for your seat and/or vehicle.
