Pilot 1410 Construction Seat

Pilot 1410 Seat

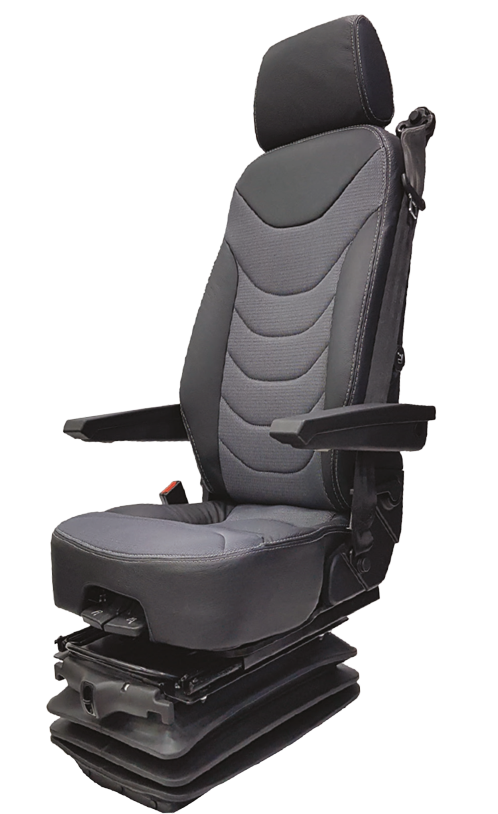

The Pilot 1410 is a comprehensive suspension seat suitable for construction machinery and other large industrial vehicles. It has a high-performing air suspension (available in 12V or 24V) designed specifically for work in rough terrain and arduous environments.

It has the option to mount a 3-point belt if required.

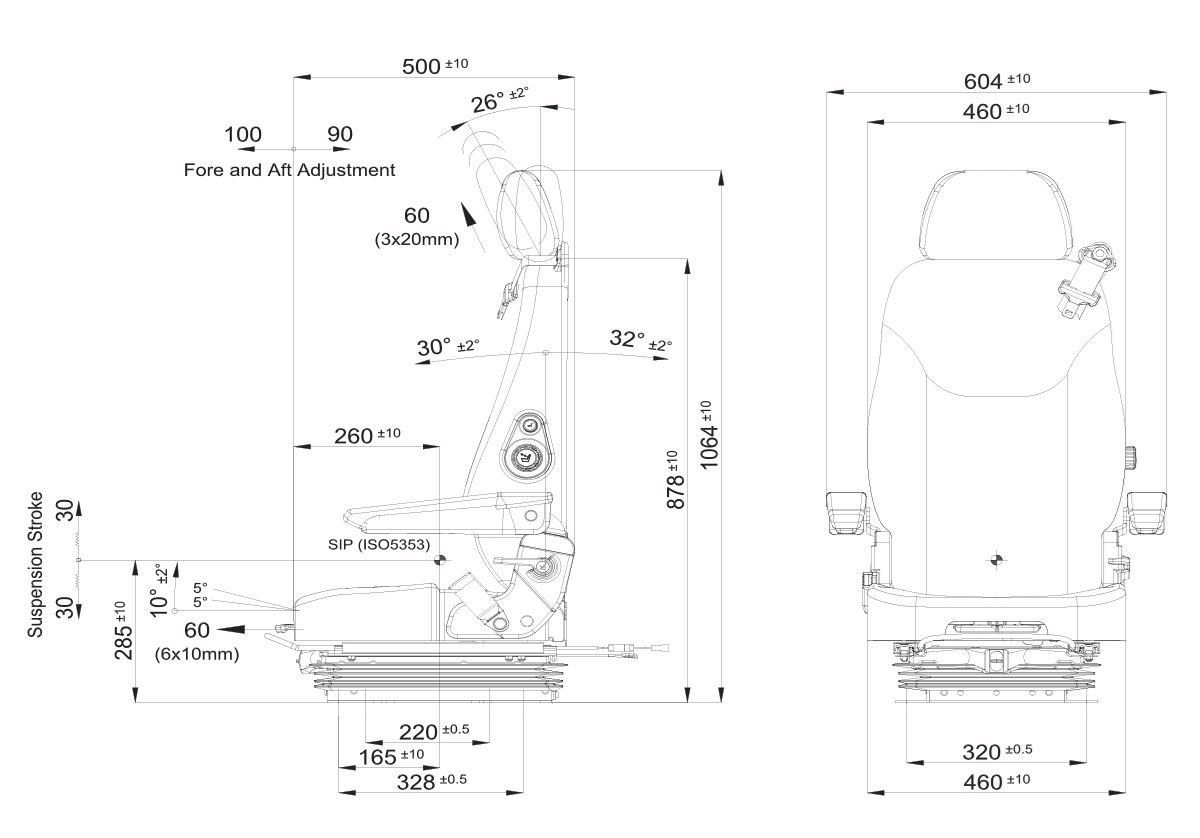

Specifications:

• 12V or 24V air suspension with built-in compressor

• 60mm vertical suspension stroke
• Weight adjustment up to 150kg
• Integral seat height adjustment
• Fore and aft adjustment - 190mm
• Backrest angle adjustment
• Seat base height and tilt adjustment
• Adjustable headrest
• Vinyl or fabric upholstery

• Tested to EU 1322/2014 Annex XIV Class I,II,III, ECE R14 M2/N2, ECE R25

Options:

• Adjustable armrests
• Lumbar support
• Document pouch

• Turntable 0 degrees - 180 degrees
• Static/retractable lap belt or 3-point seat belt

• Operator presence switch
• Seat heating
