Pilot 406/M80H Seat

Pilot 406/M80H Seat

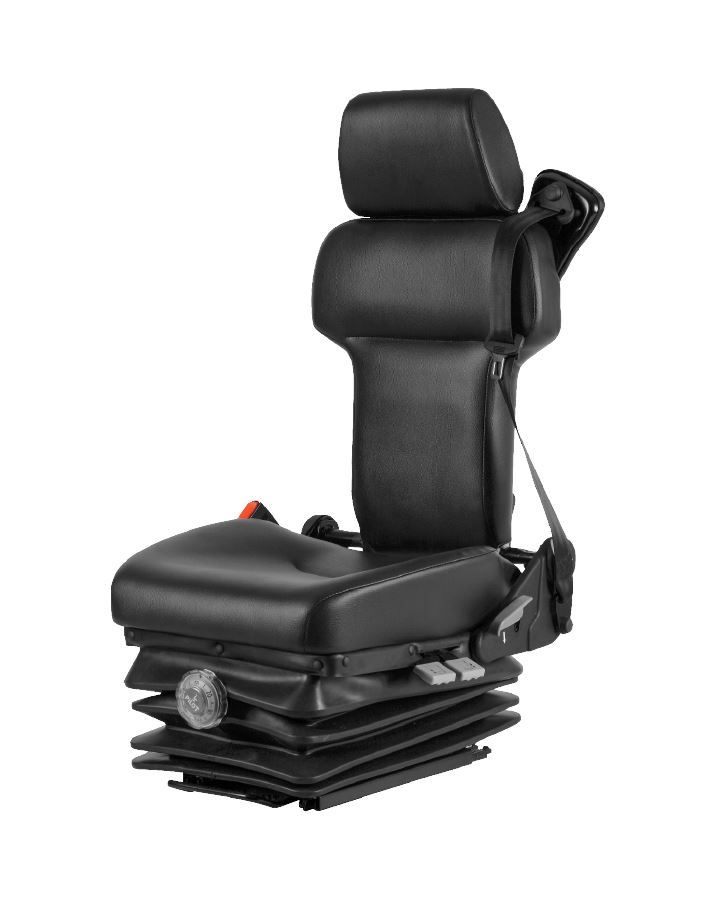

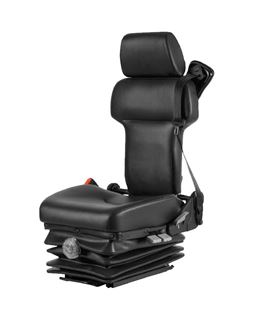

The Pilot 406/M80H is a unique mechanical suspension seat, suitable mainly for mining and military applications. The backrest is designed with a narrow profile, to allow the user to wear breathing apparatus with back-mounted oxygen tanks, whilst still sitting comfortably within the seat. This makes it ideal for compact mining machinery and military vehicles transporting fully-equipped personnel.

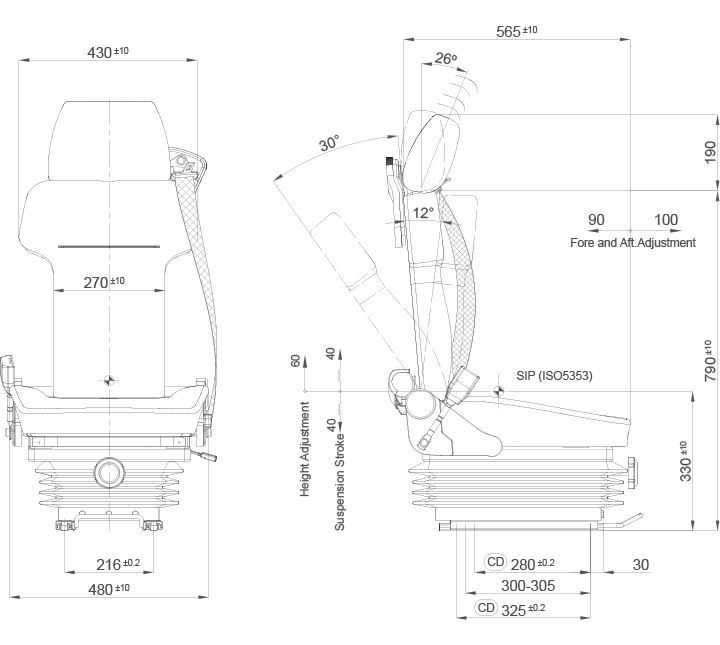

Specifications:

• Mechanical suspension
• Narrow-profile backrest

• 80mm vertical suspension stroke
• 60mm integral height adjustment
• Up to 150kg weight adjustment
• Slide rail adjustment - 190mm

• Backrest angle adjustment
• EEC type approved classes I/II/III

Accessories:

• Headrest
• Static/retractable lap belt or 3-point seat belt
• Seat heating
• Operator presence switch
• Turntable
