Pilot 488 Mech Seat

Pilot 488 Mech Seat

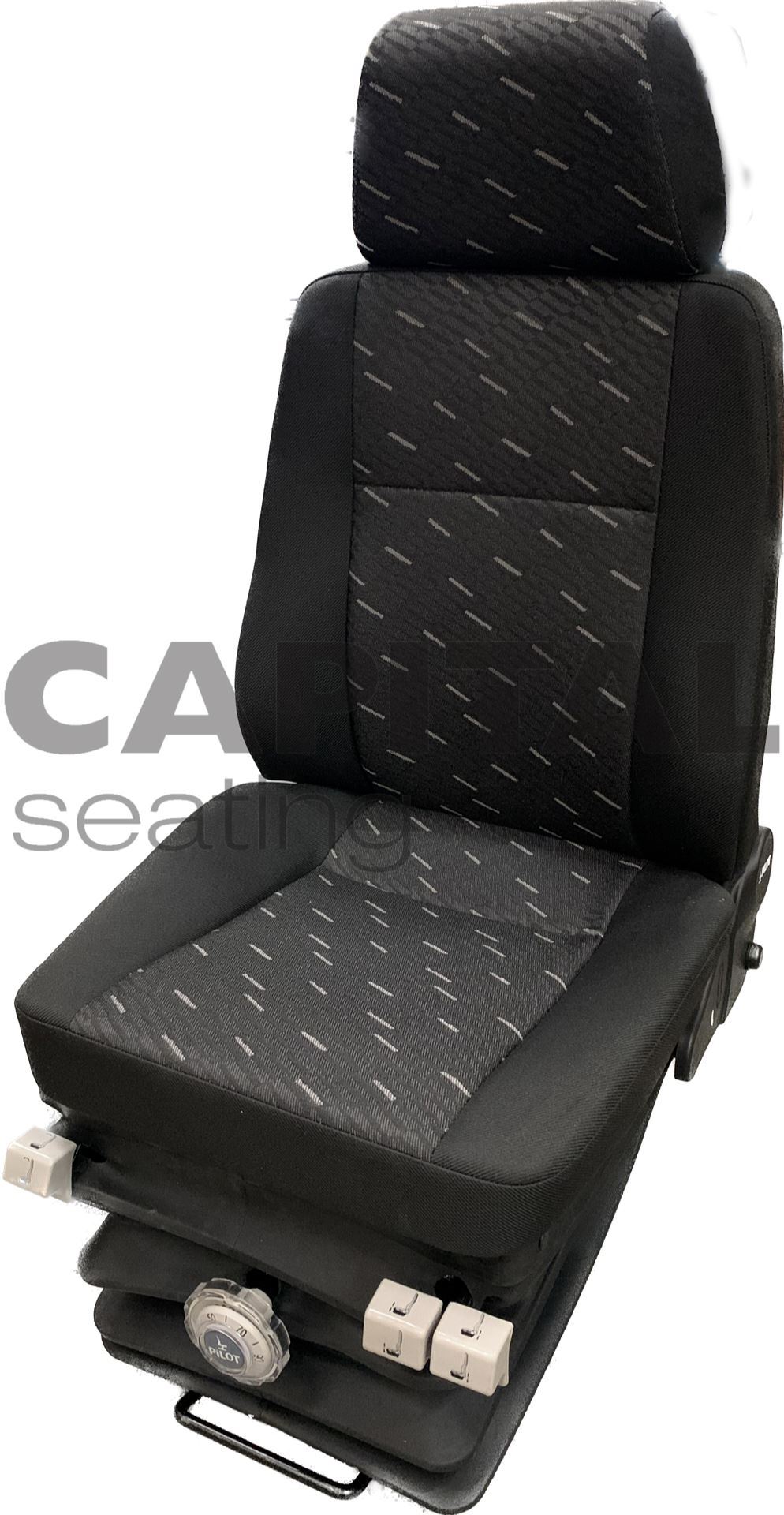

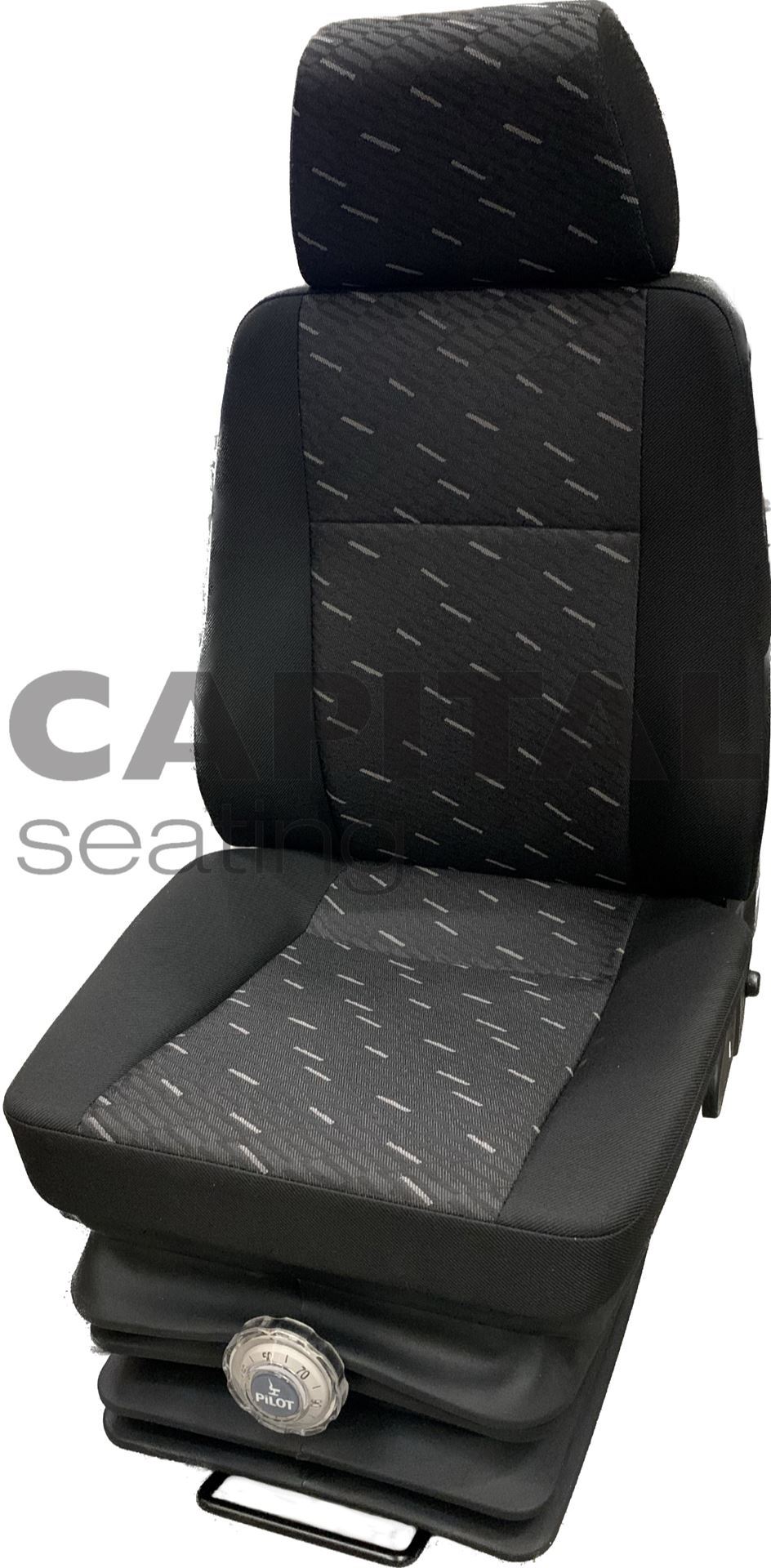

The Pilot 488 Mech seat provides the a reliable and sturdy mechanical suspension with a mid-height backrest. It also comes with a comprehensive weight rating of up to 150kg, ideal for drivers of different weights, and also height/tilt adjustment and an adjustable lumbar support for added comfort.

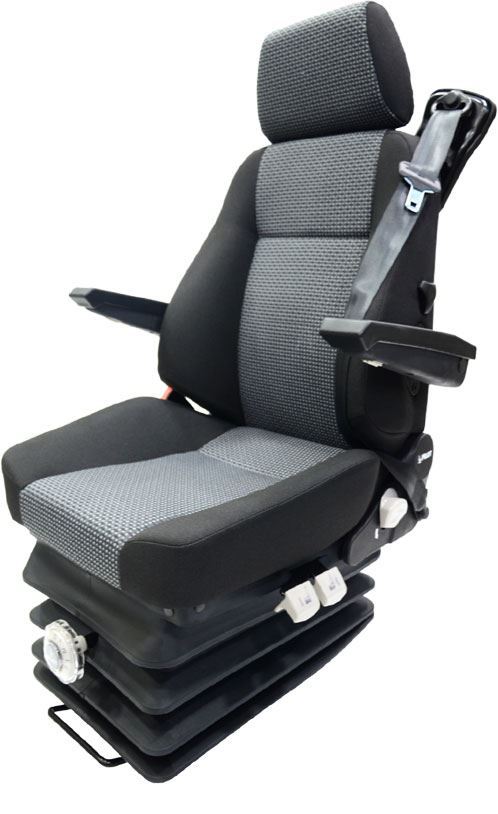

The seat pictured shows an integrated 3-point belt but this seat does not include this feature as standard. But you can view our seats with 3-point belt options here.

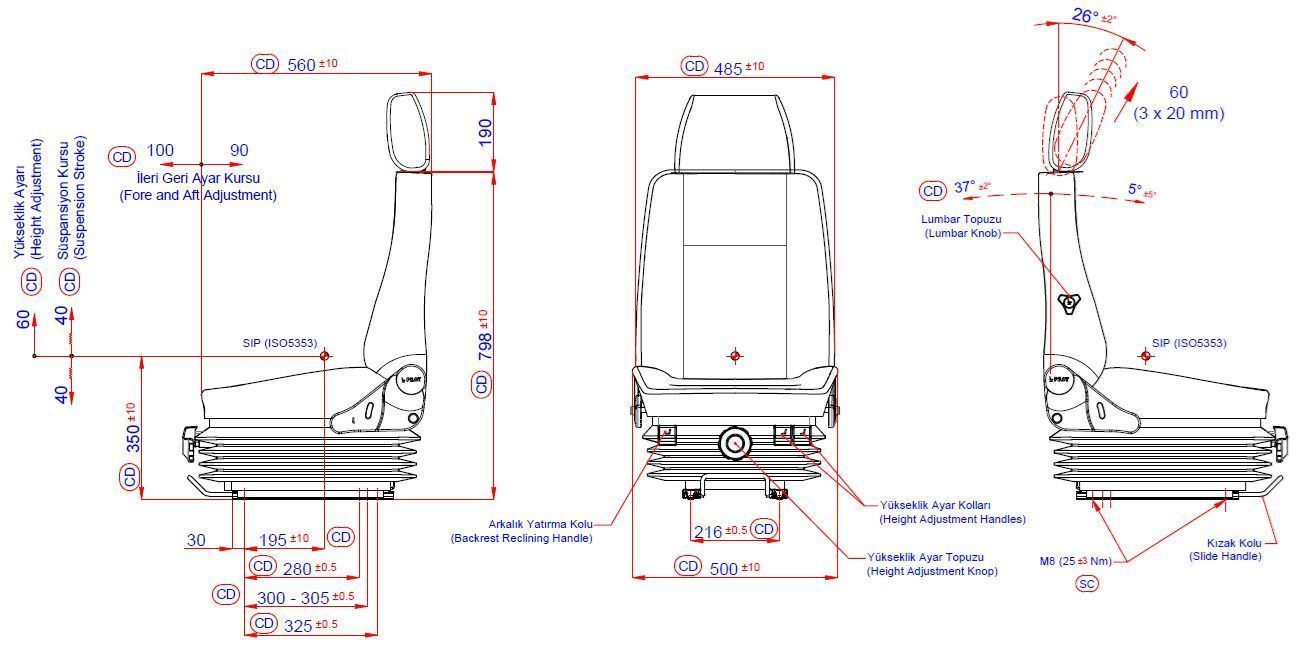

Specifications:

• Mechanical suspension
• Weight adjustment - up to 150kg
• Suspension stroke 80mm
• 190mm slide travel
• Adjustable lumbar support
• Adjustable headrest
• Backrest adjustment
• Height and tilt adjustment - 60mm
• Left or Front-Mounted Controls
• 2-tone fabric upholstery
• Standard connection width at 216mm (additional options available with adapter brackets - enquire for more details)
• Testing to ECE R14, ECE R25, M3/N3, ISO 7096, EM3, EM5

Accessories:

• Turntable
• Adjustable armrests
• Seat heating
• Static or retractable lap belt
• Integrated 3-pont seat belt
• Operator presence switch
• Vinyl or leather upholstery
