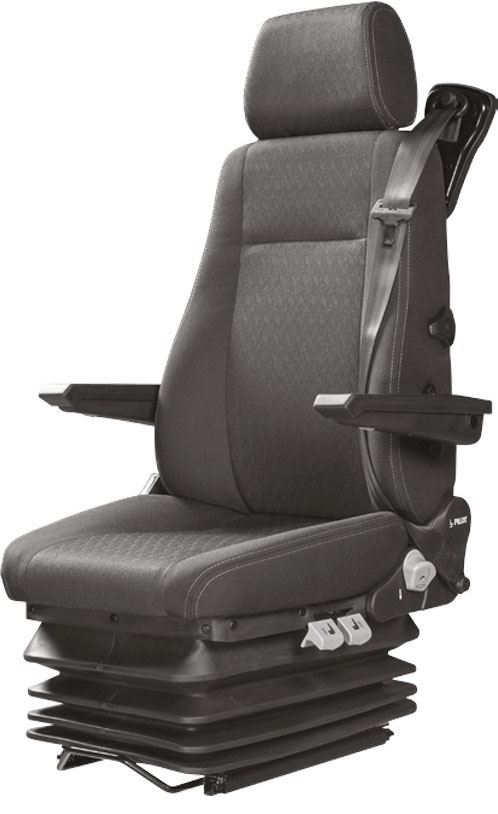

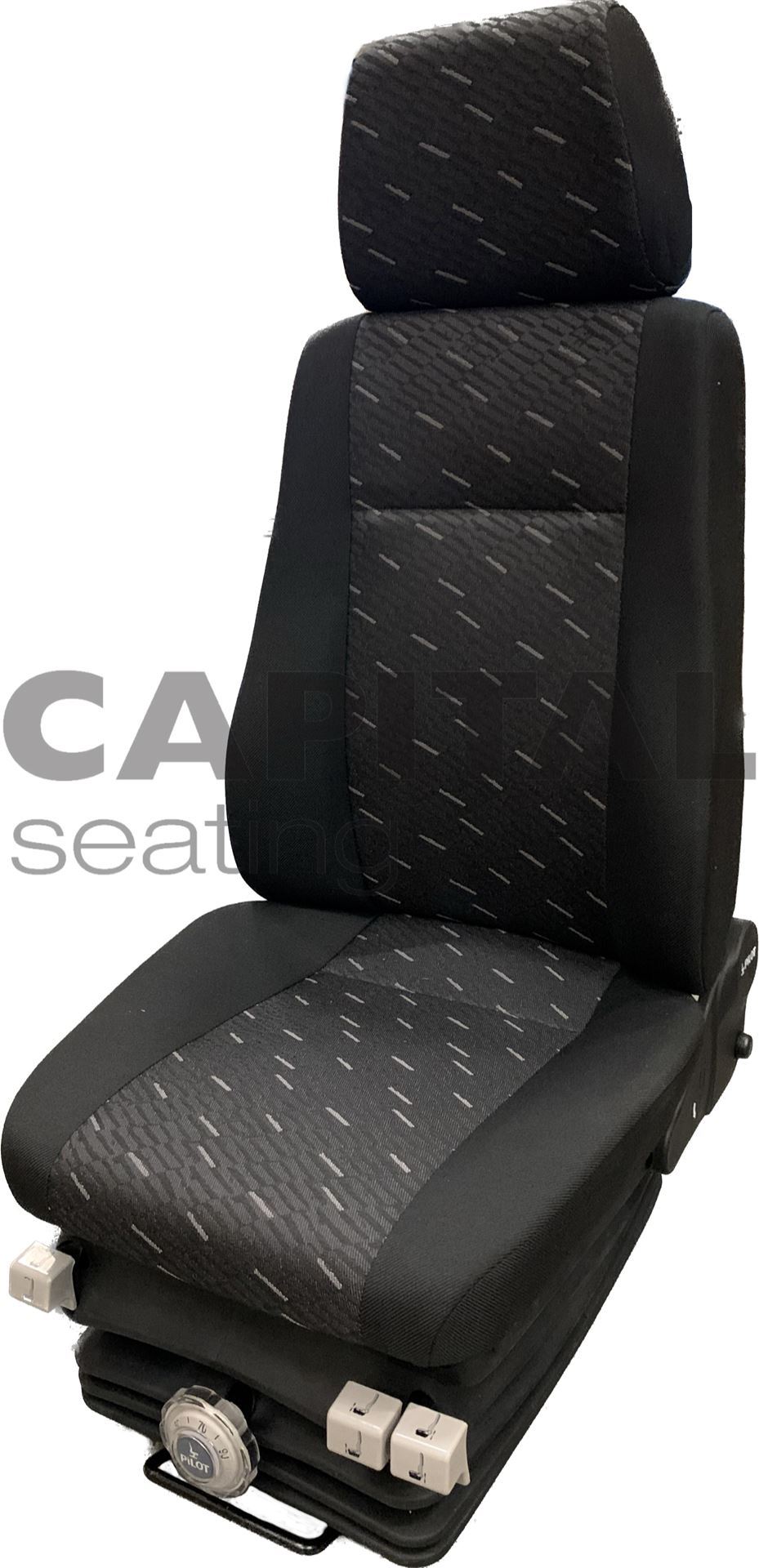

Pilot P1098/M80 Seat

Pilot P1098/M80 Seat

The Pilot P1098/M80 seat is a robust mechanical suspension seat designed for drivers in trucks, lorries, and other commercial vehicles, as well as for some construction manchinery. The suspension is activated by the integrated spring system, and has numerous comfort features such as backrest recline and an adjustable lumbar support. The seat model can be supplied with or without a 3-point seat belt.

The front-mounted controls are ideal for vehicles with limited access to either side of the seat position.

The seat is tested to relevant M3/N3 ECE R14/R25 safety standards.

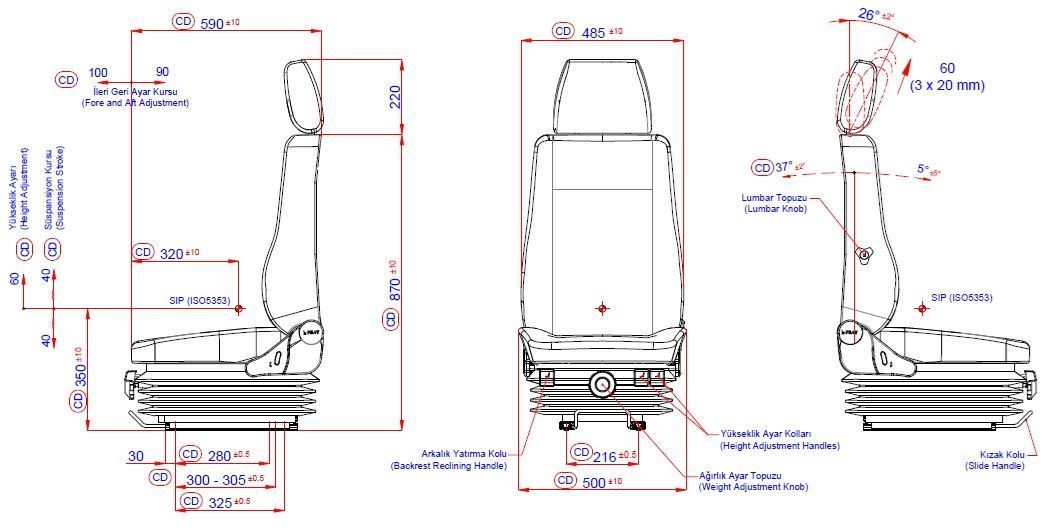

Specifications:

• Mechanical suspension
• Weight adjustment - up to 150kg
• Suspension stroke 80mm
• 190mm slide travel
• Adjustable lumbar support
• Adjustable headrest
• Backrest adjustment
• Height and tilt adjustment - 60mm
• Front-Mounted Controls
• 2-tone fabric upholstery
• Standard connection width at 216mm (additional options available with adapter brackets - enquire for more details)
• Testing to ECE R14, ECE R25, M3/N3

Accessories:

• Integrated 3-point seat belt
• Turntable
• Adjustable armrests
• Seat heating
• Operator presence switch
• Vinyl or leather upholstery
