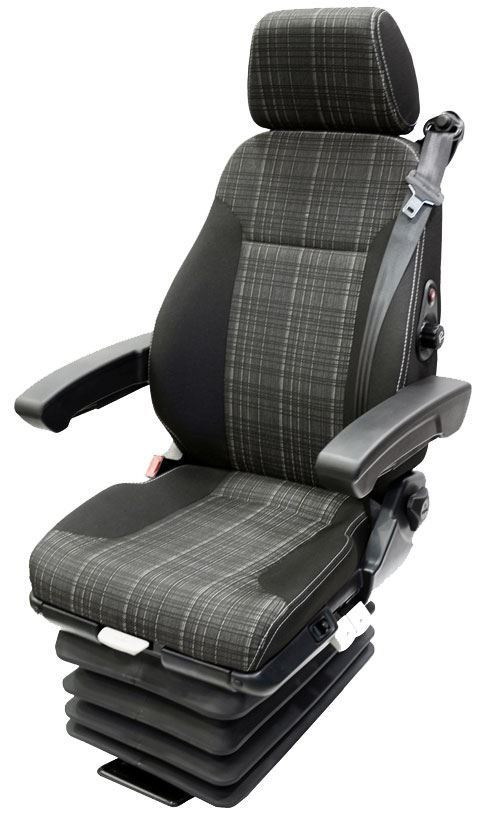

Pilot Supreme Smart Air P1101 Seat

Elite air suspension seat for trucks and other commerical vehicles, with or without integrated seat belt
SKU: PL1101A80-01
Manufacturer: Pilot
call for price

Pilot Supreme Smart Air P1101 Seat

The Pilot Supreme Smart Air is a high-performing air suspension seat designed for drivers in trucks, lorries, and other commercial vehicles. The suspension is activated by the on-board air supply of the vehicle, and has numerous comfort features such as backrest recline and seat cushion depth adjustment. It can be supplied with an integrated 3-point belt, and the seat is tested to relevant M2/N2 and M3/N3 safety standards.

Specifications:

  • Air suspension
  • Weight adjustment - up to 150kg
  • Suspension stroke 80mm
  • 190mm slide travel
  • Adjustable lumbar support
  • Adjustable headrest
  • Backrest adjustment
  • Height and tilt adjustment - 60mm
  • Seat cushion depth adjustment
  • Left Hand Controls
  • 2-tone fabric upholstery
  • Standard connection width at 216mm (additional options available with adapter brackets - enquire for more details)
  • Testing to ECE R14, ECE R25, M2/N2, M3/N3

Accessories:

  • Turntable
  • Integrated 3-point seat belt
  • Adjustable armrests
  • Seat heating
  • Operator presence switch
  • Vinyl or leather upholstery
