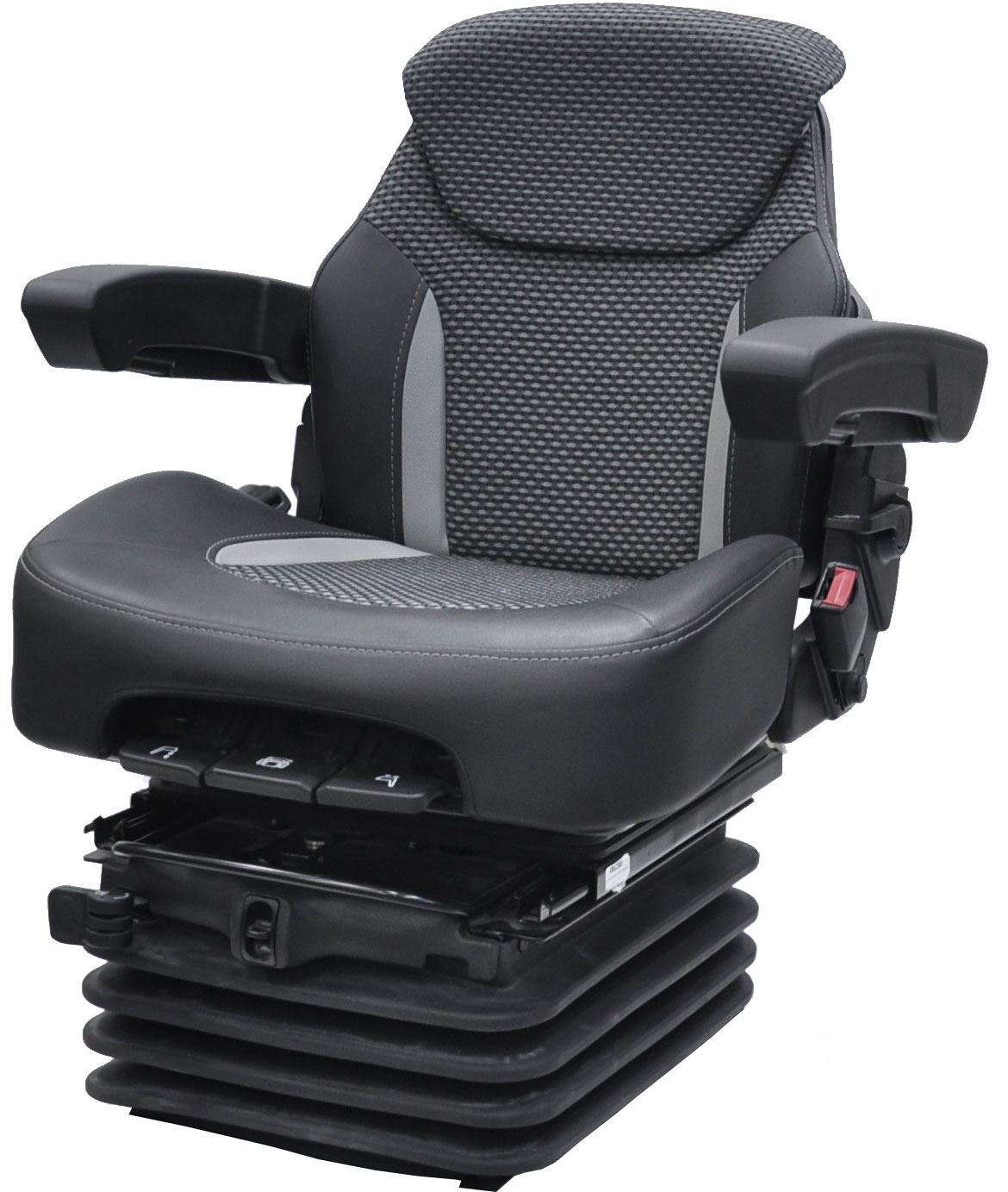

Pilot Trimact 155/EA160 Deluxe Seat

Deluxe air suspension seat for all variants of large agricultural machinery
Manufacturer: Pilot

Pilot Trimact 155/EA160 Deluxe Seat

The 155/EA160 is a premium air suspension seat from Pilot's range of Trimact seats, suitable for a wide range of medium and large-sized agricultural machinery.

The seat includes comfort and performance features such as a fore/aft isolator and turntable as standard.

Specifications:

  • 12V or 24V air suspension with built-in compressor
  • 100mm vertical suspension stroke
  • 60mm integral height adjustment
  • Up to 150kg automatic weight adjustment
  • Fore/aft isolator
  • Slide rail adjustment - 190mm
  • Seat base cushion tilt and length adjustment
  • Folding backrest
  • Backrest angle adjustment
  • Backrest extension
  • Fabric upholstery
  • Tested to EU 1322/2014 Annex XIV Class II,III

Options:

  • Lumbar support
  • Adjustable armrests
  • Adjustable shock absorber
  • Document box
  • Static or retractable lap belt
  • Seat heating
  • Operator presence switch
  • Turntable
  • Vinyl upholstery
  • Waterproof protective seat cover
