Adapter & Mounting Brackets

Adaptor & Mounting Brackets

A variety of adaptor and mounting brackets to install replacement seats into the mounting points of where the original seat was installed. Brackets vary in shape and size, but allow for an easy installation. Brackets are available as both universal, or specific to individual vehicle models

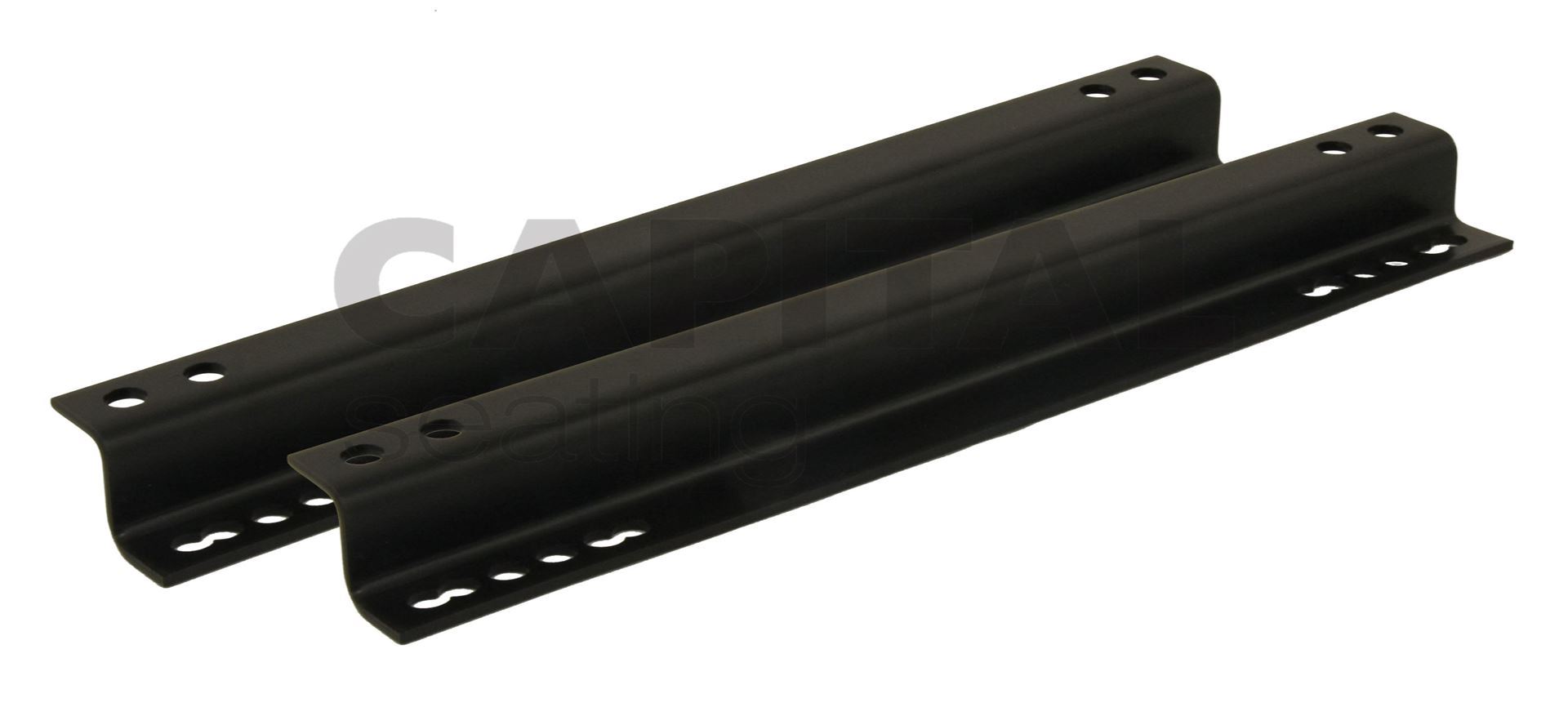

Universal Bracket:

• Z-Bar Style
• Heavy-duty black coated steel
• Hole centres at 216mm, 230mm, 255mm, 280mm, 305mm and 320mm

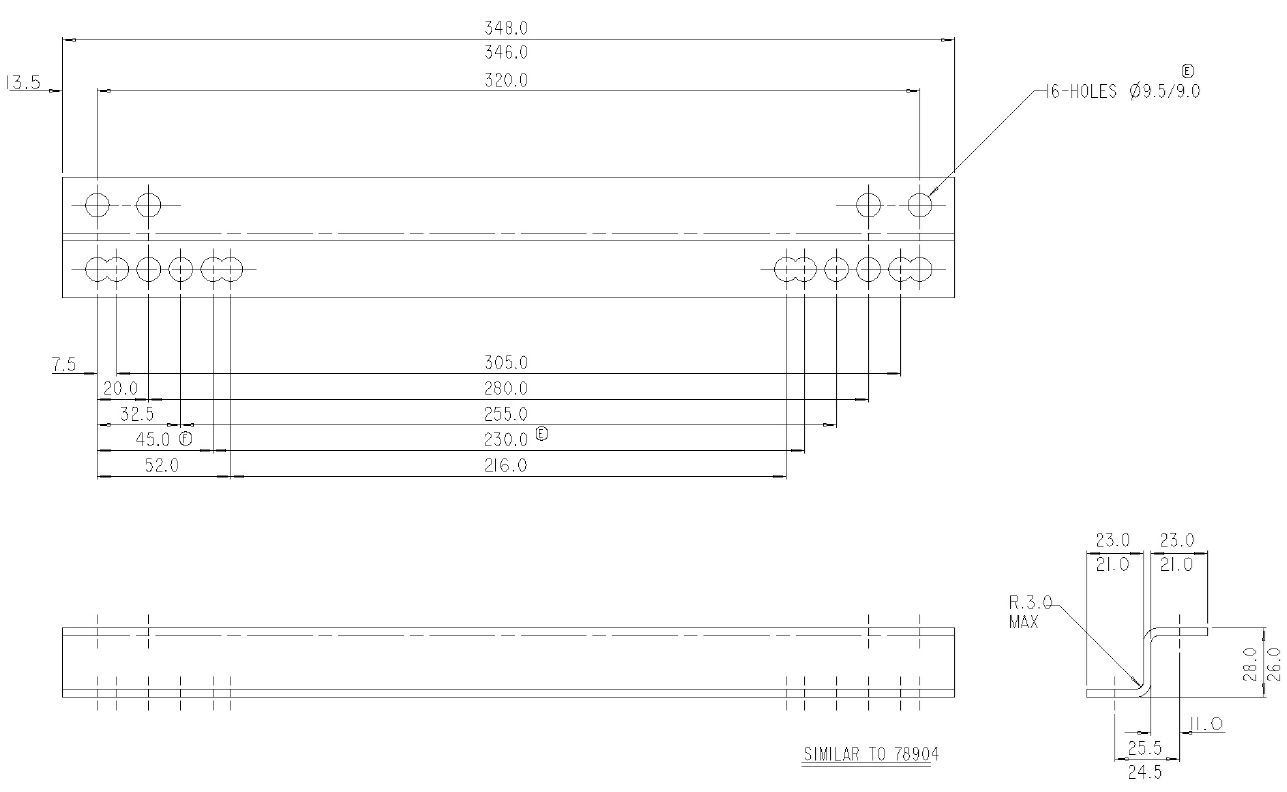

Full full specifications of the Universal Bracket, please see the above drawing.

Vehicle Specific Types:

• Zetor
• Deutz
• Ford
• Massey Ferguson
• John Deere
• Fiat
• Iveco
• Peugeot
• Renault
• Volvo
• Caterpillar
• Nissan

 The list is by no means exhaustive - please enquire for more details.
