CS85/H90 Seat

Economical mechanical suspension seat for all variants of agricultural machinery. Ideal replacement for Grammer DS85 seat models.
Delivery date: 1-2 days
Manufacturer: United Seats

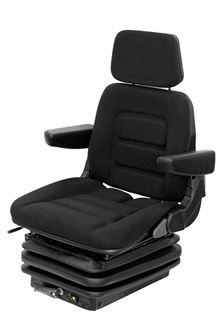

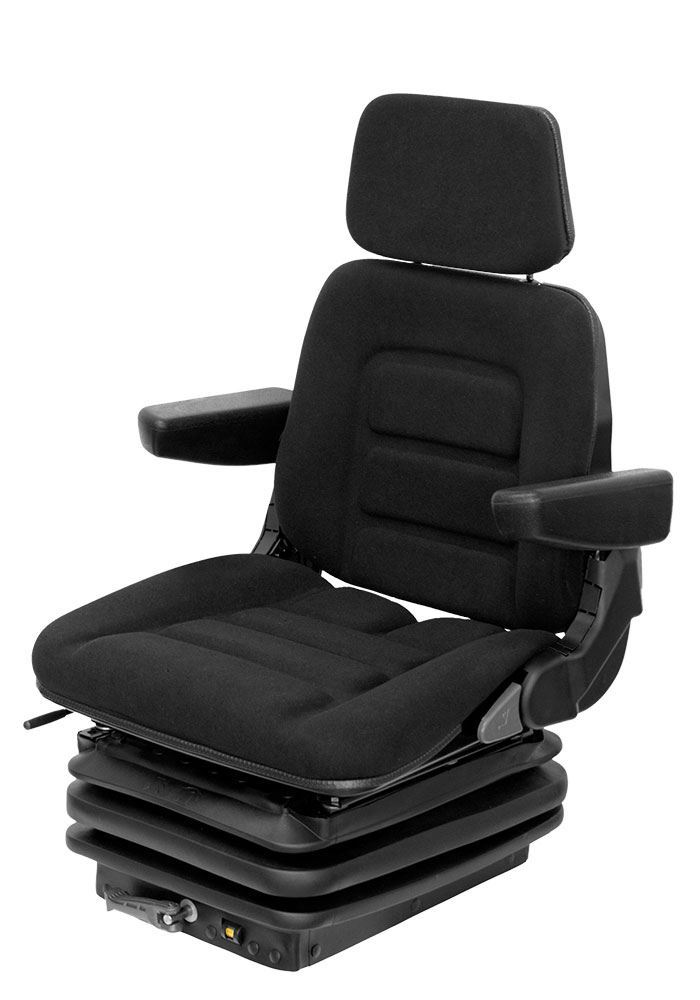

United Seats CS85/H90

The CS85/H90 is a robust mechanical suspension seat from United Seats, suitable for medium-to-large agricultural machinery. It is built to a high standard of quality whilst still offering excellent value for money. It offers a high backrest for maximum back support, as well as lumbar support adjustment, adjustable armrests and backrest extension.

The style, profile and dimensions of the seat are very similar to that of the classic Grammer DS85 style suspension seats, and this provides an ideal solution if looking for a like-for-like replacement.

Specifications:

  • Mechanical suspension
  • 90mm vertical suspension stroke
  • 3-stage 60mm height adjustment
  • 45-125kg weight adjustment
  • Slide rail adjustment - 150mm
  • Backrest angle adjustment
  • Adjustable backrest extension
  • Adjustable armrests
  • Black fabric or black vinyl options


Options:

  • Operator presence switch
  • Static or retractable lap belt
  • Seat heating
  • Waterproof protective seat cover





United Seats CS85/H90

The CS85/H90 is a robust mechanical suspension seat from United Seats, suitable for medium-to-large agricultural machinery. It is built to a high standard of quality whilst still offering excellent value for money. It offers a high backrest for maximum back support, as well as lumbar support adjustment, adjustable armrests and backrest extension.

The style, profile and dimensions of the seat are very similar to that of the classic Grammer DS85 style suspension seats, and this provides an ideal solution if looking for a like-for-like replacement.

Specifications:

  • Mechanical suspension
  • 90mm vertical suspension stroke
  • 3-stage 60mm height adjustment
  • 45-125kg weight adjustment
  • Slide rail adjustment - 150mm
  • Backrest angle adjustment
  • Adjustable backrest extension
  • Adjustable armrests
  • Black fabric or black vinyl options


Options:

  • Operator presence switch
  • Static or retractable lap belt
  • Seat heating
  • Waterproof protective seat cover
